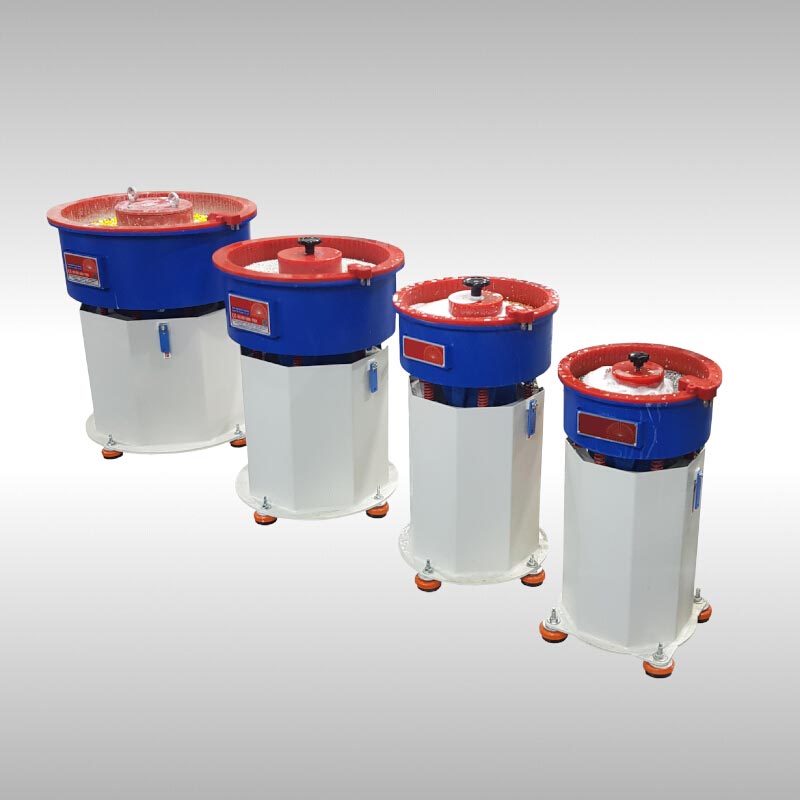

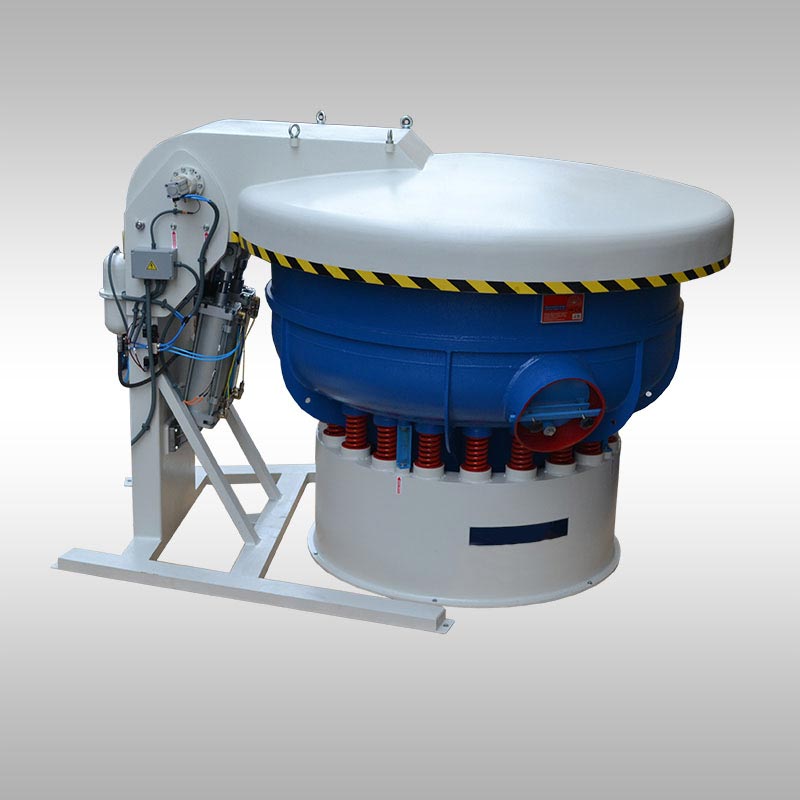

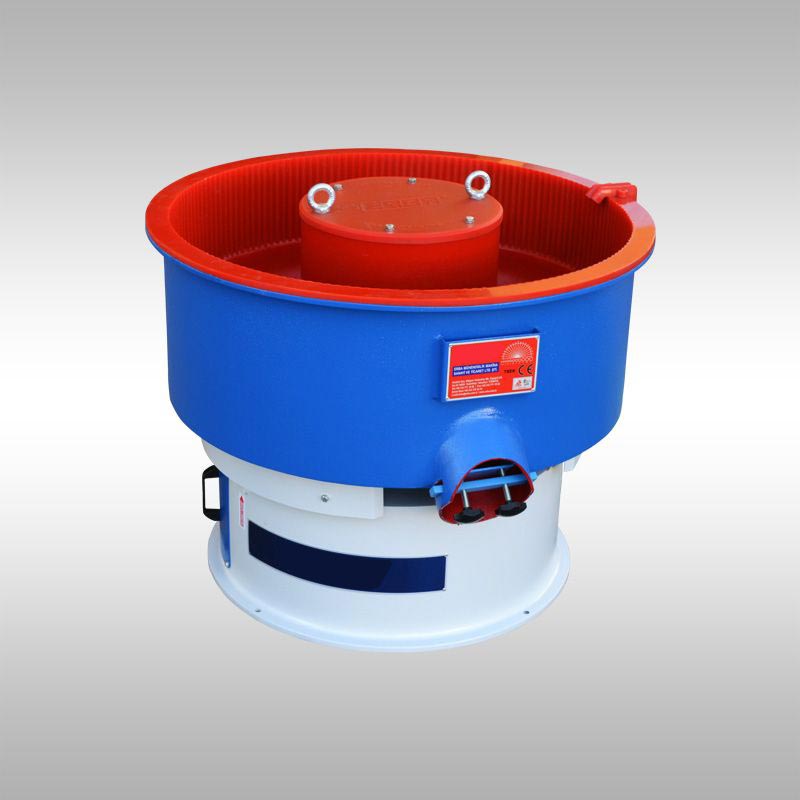

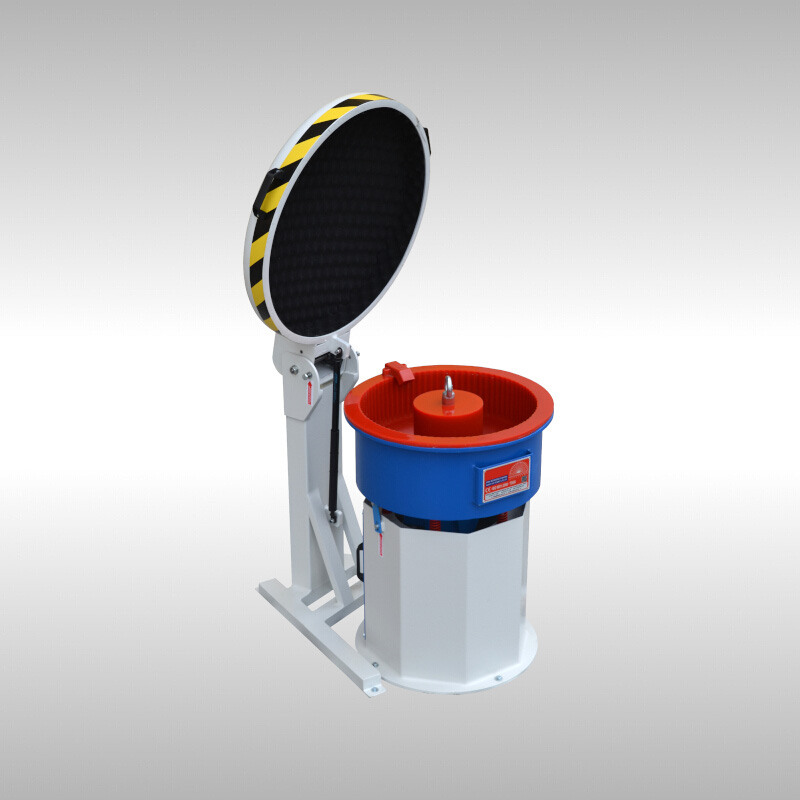

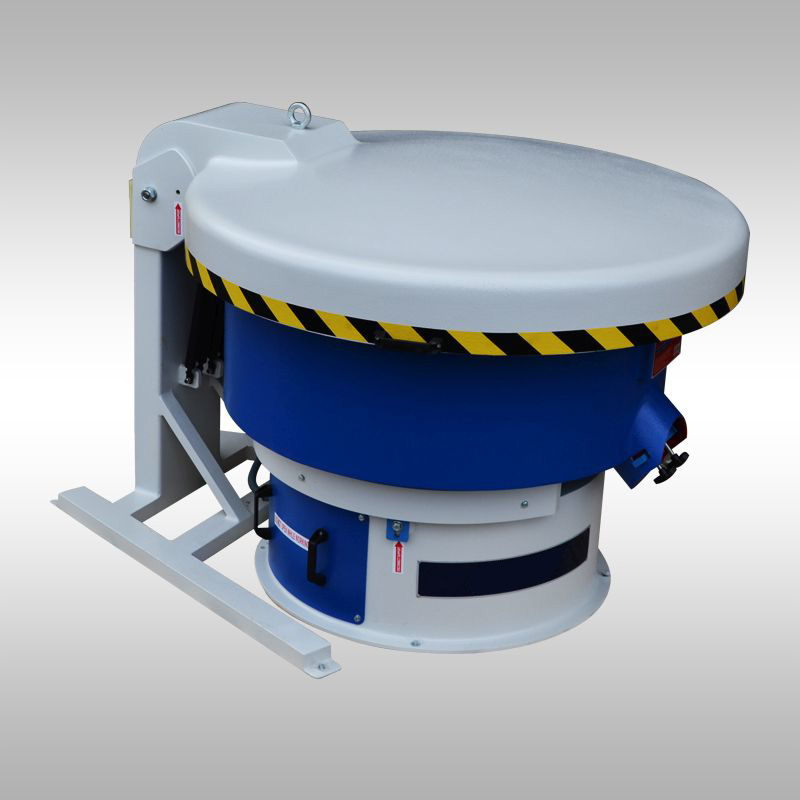

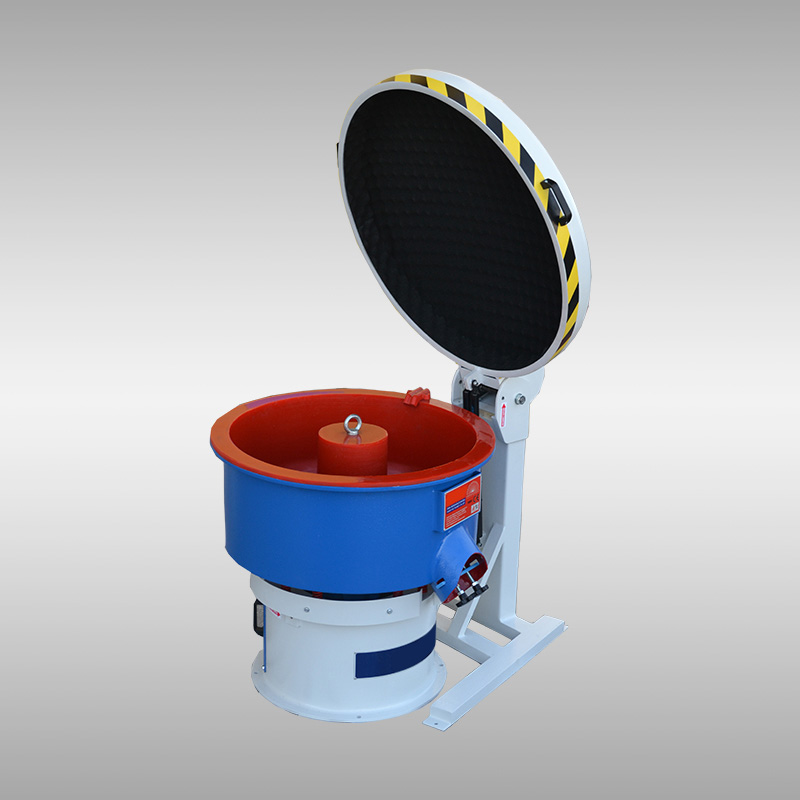

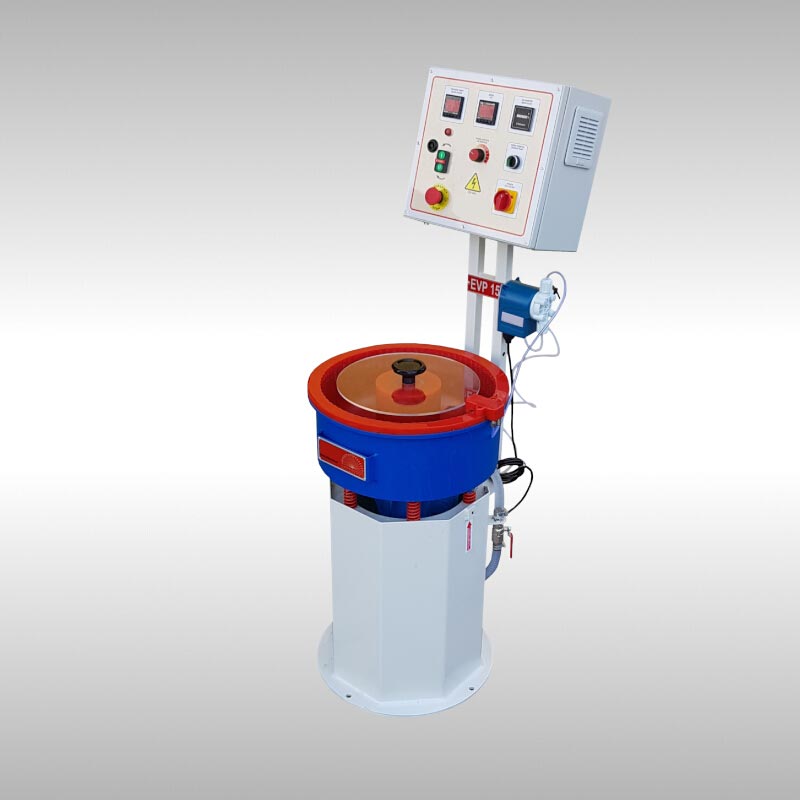

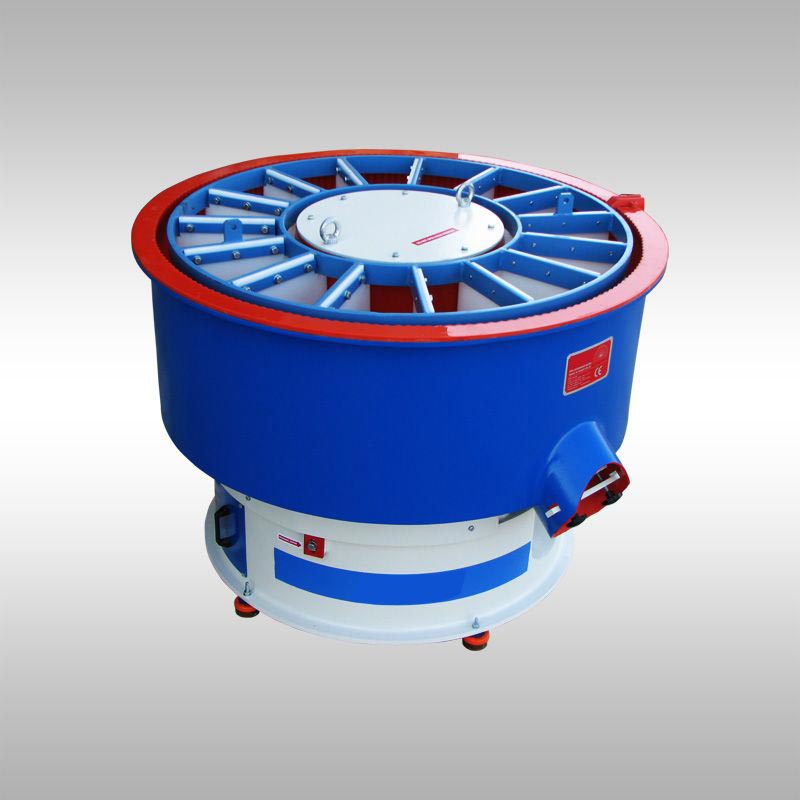

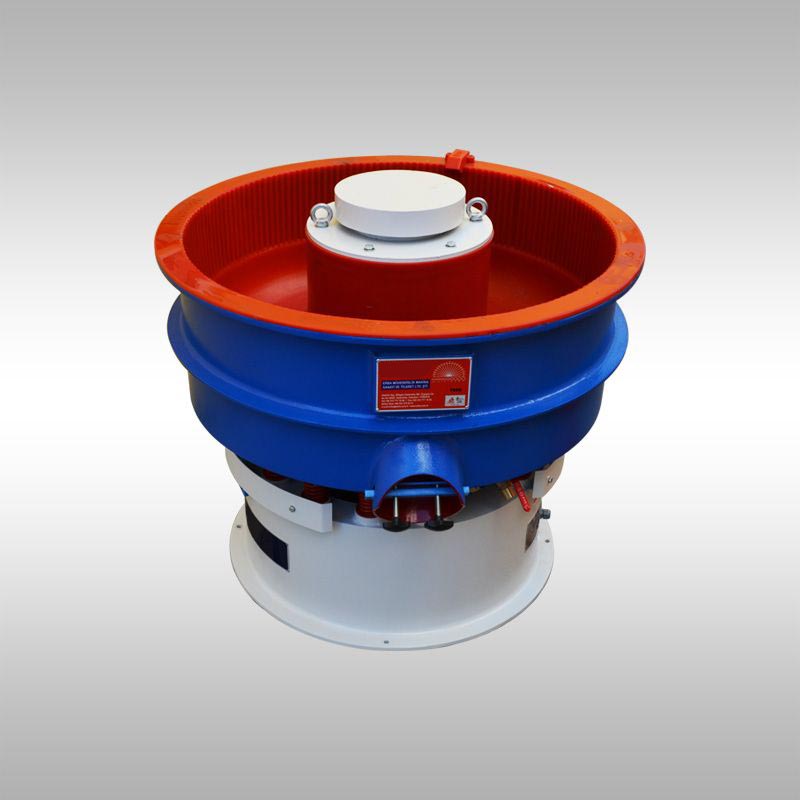

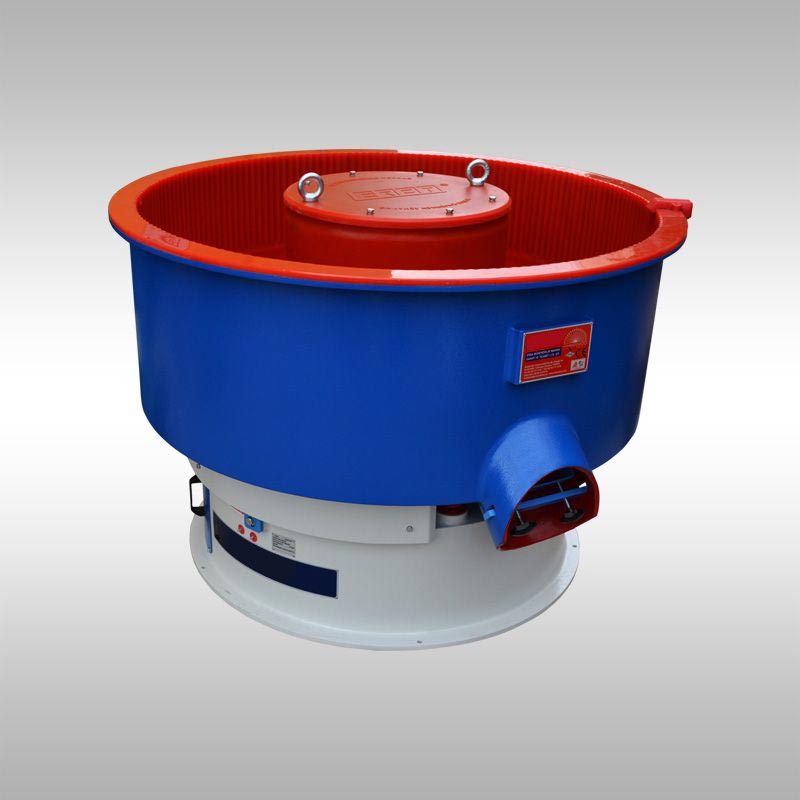

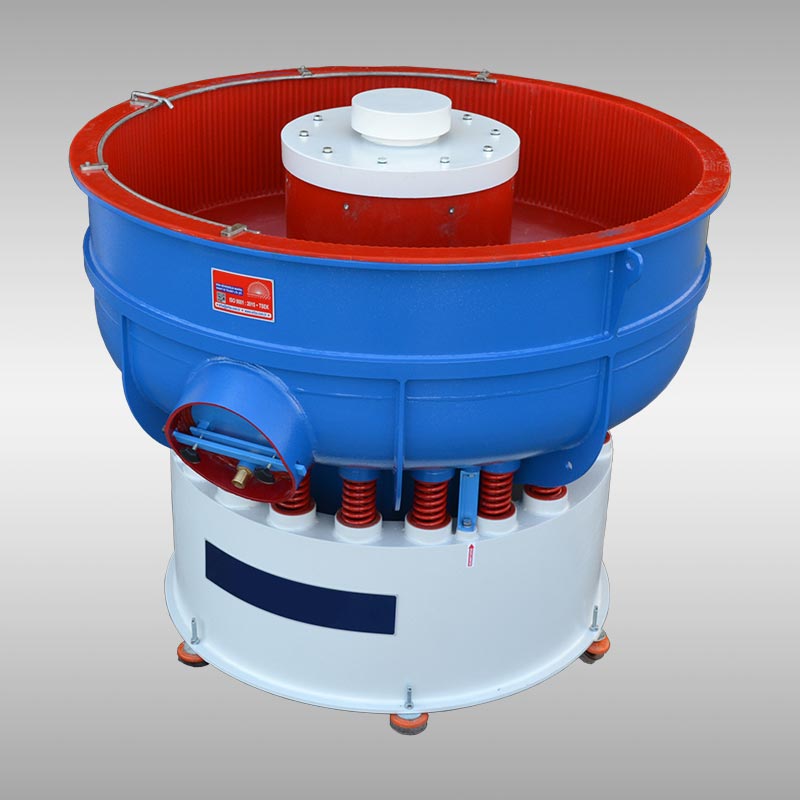

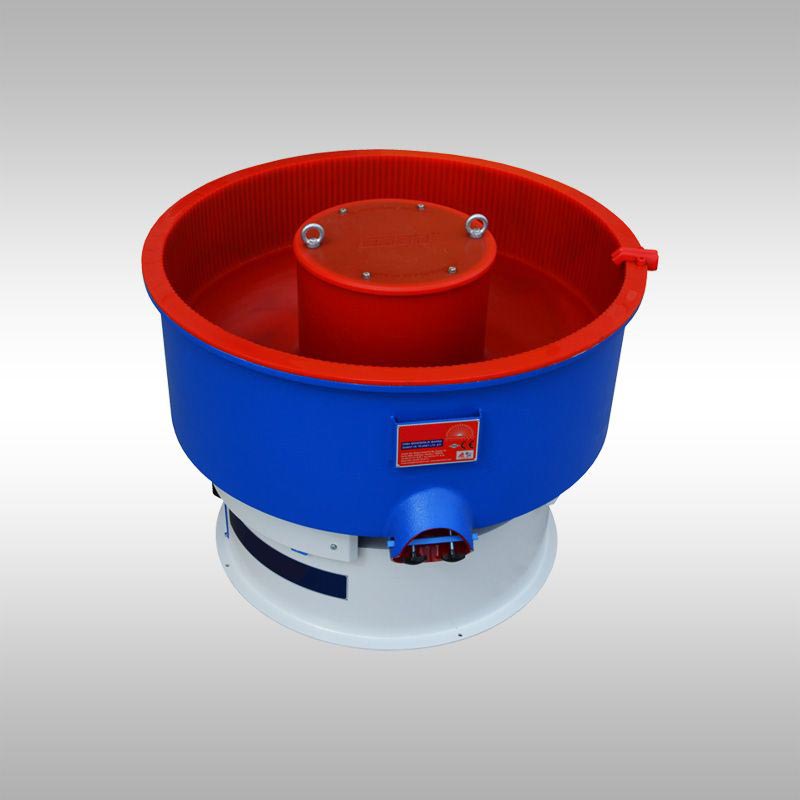

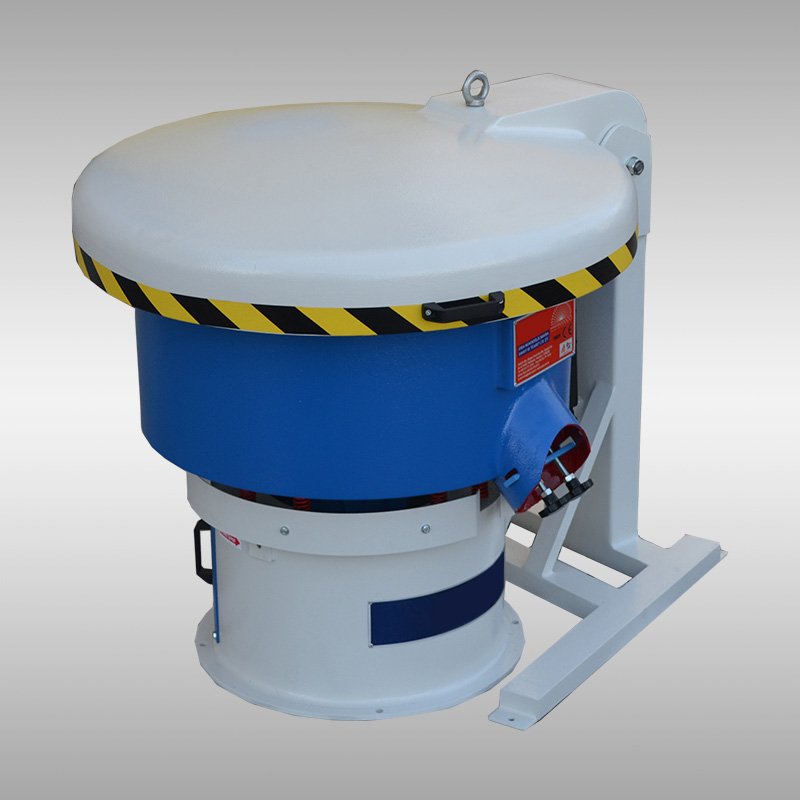

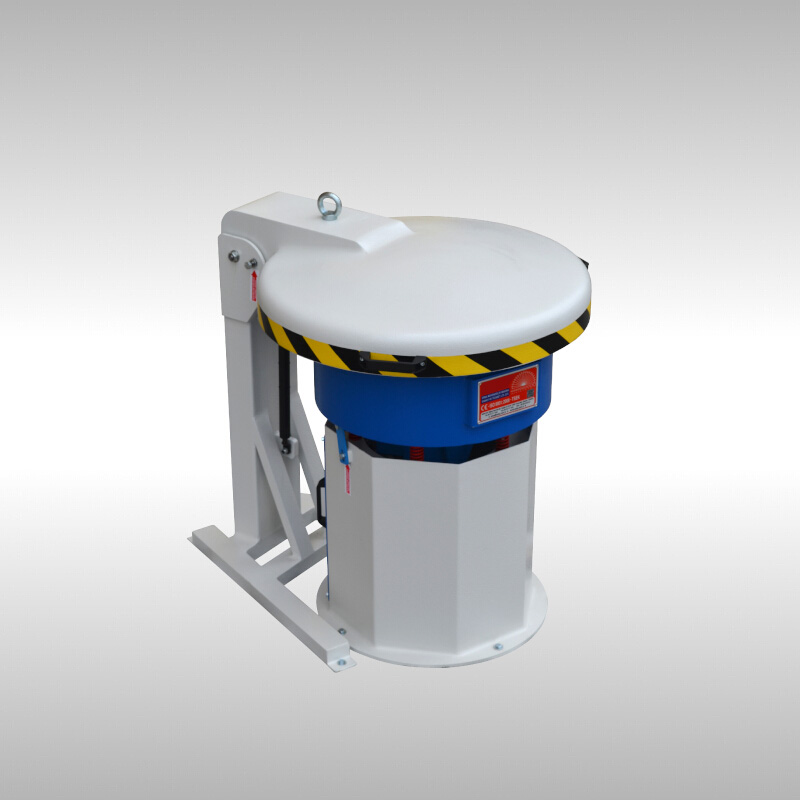

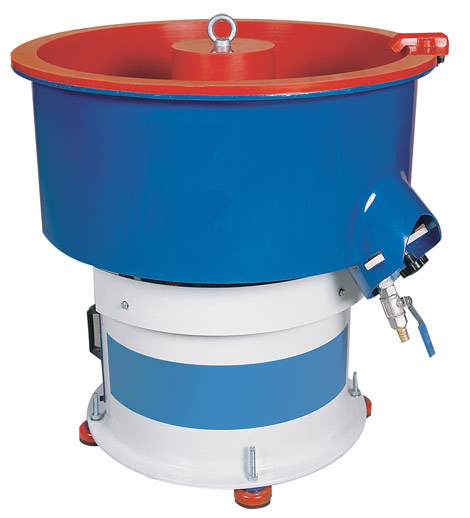

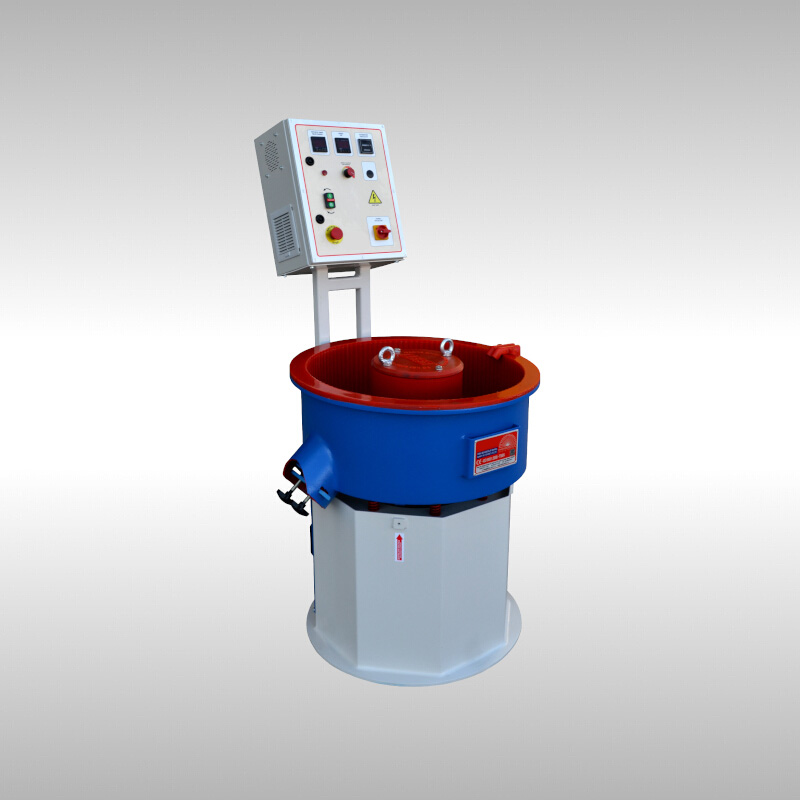

Vibratory Bowl Finishing Machine, without unload
Move your mouse over image to zoom

EVP

  • A special machine without an integrated screening device
  • High abrasive efficienty is always combined with a good surface finishing
  • Special design heavy-duty electric vibration motor
  • Continuously adjustable vibration control
  • High durable hot-poured polyurethane lining

Technical details

vibratory bowl technical details

Download the Datasheet

TypeGross Volume
lt.
Power
kW
Voltage / Frequency
AC-V/Hz 3 phaze
Weight
kg

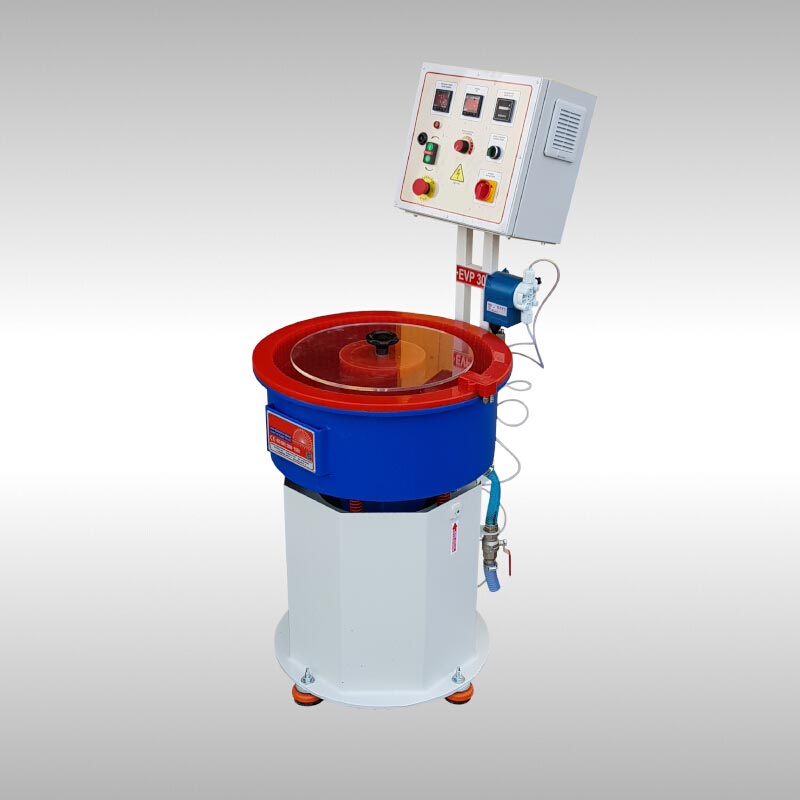

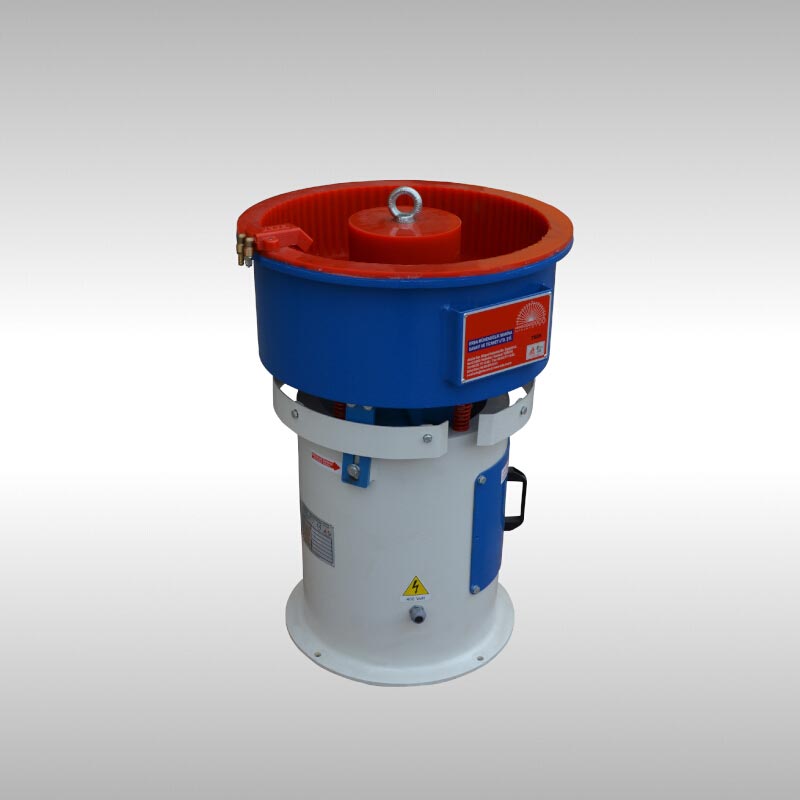

EVP 30 30 0.55 400 / 50 (*) 105

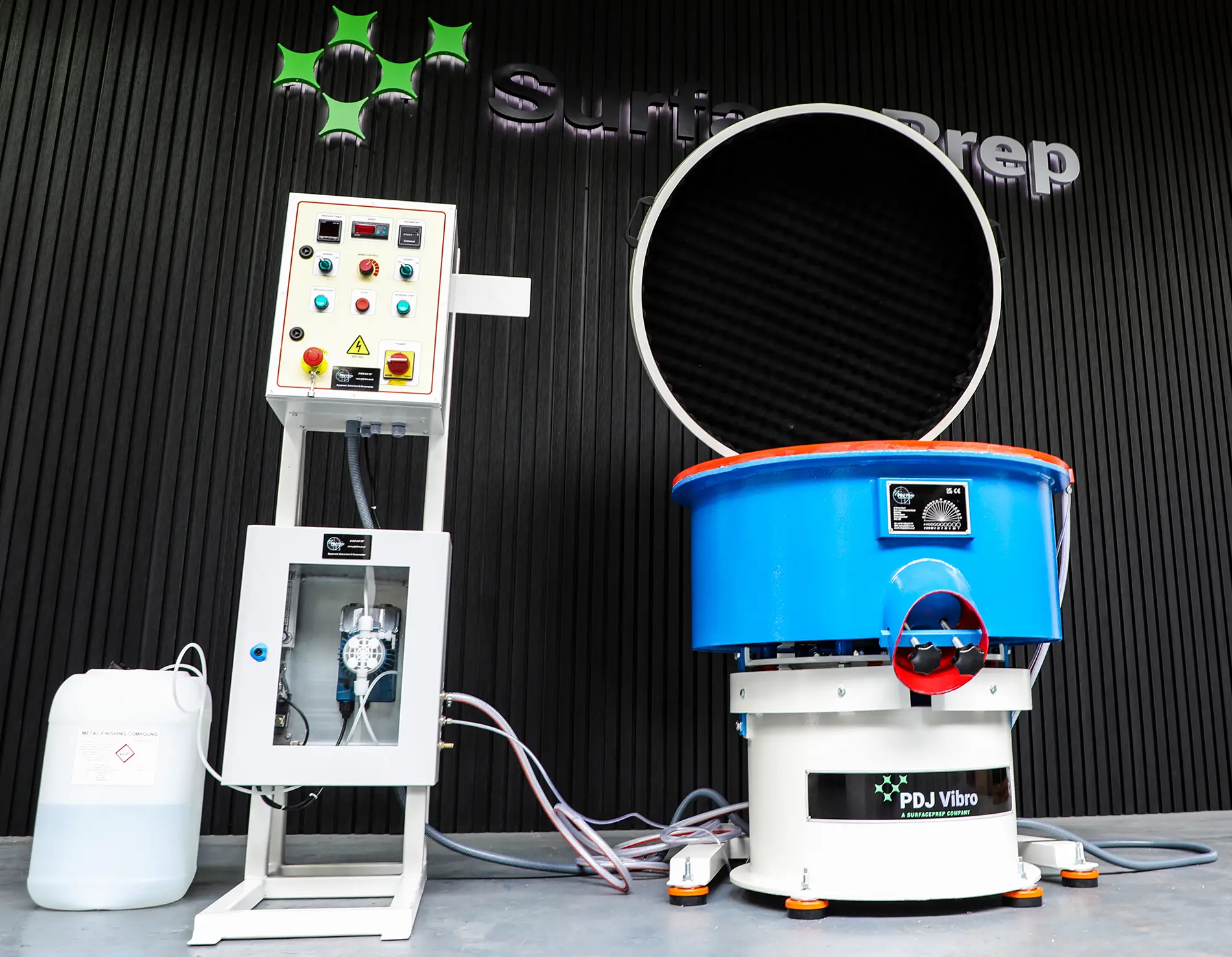

EVP 110 120 1.1 400 / 50 (*) 260
EVP 250 250 1.5 400 / 50 (*) 425
EVP 400 400 3 400 / 50 (*) 620
EVP 550 585 4 400 / 50 (*) 1200

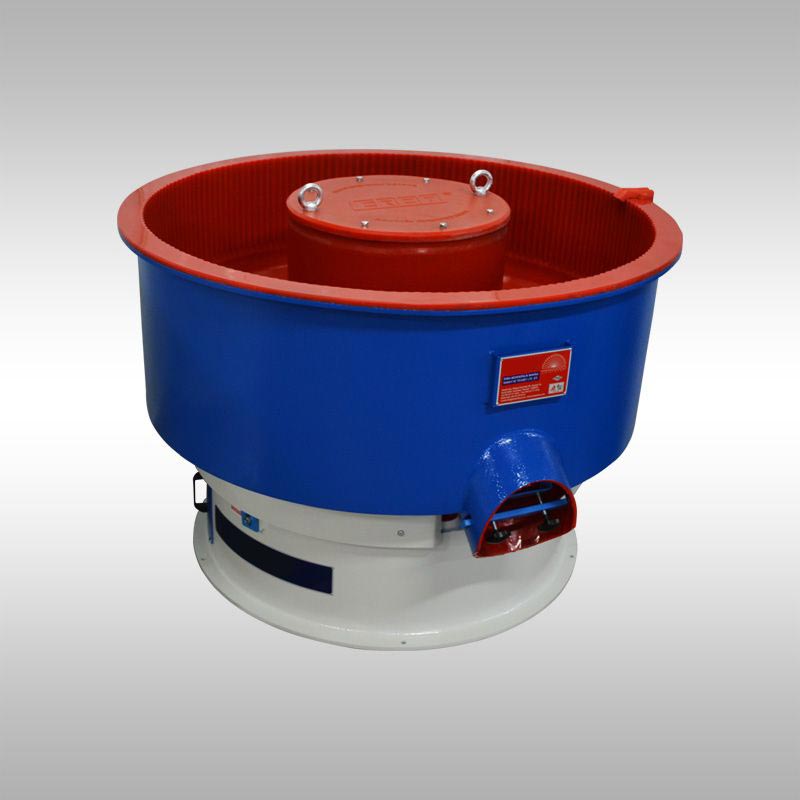

EVP 800 830 5.5 400 / 50 (*) 1270
EVP 1100 1100 5.5 400 / 50 (*) 1450
EVP 1500 1500 11 400 / 50 (*) 2300
EVP 2200 2200 15 400 / 50 (*) 2850
EVP 3000 3000 15 400 / 50 (*) 3200

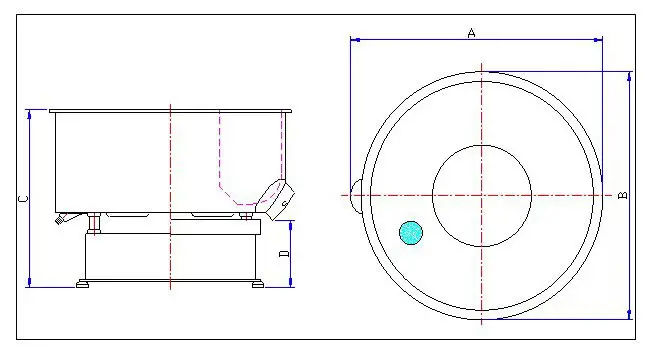

TypeA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
EVP 30 590 506 150 500 400 530 200 840
EVP 110 840 620 270 750 350 390 320 840
EVP 250 1100 910 275 1000 325 375 380 860
EVP 400 1320 1070 340 1200 430 430 440 970
EVP 550 1540 1228 400 1400 380 330 510 1025
EVP 800 1740 1370 445 1600 400 350 560 1150
EVP 1100 1816 1375 540 1660 450 400 610 1170
EVP 1500 2000 1600 520 1860 450 390 750 1290
EVP 2200 2390 1810 670 2240 470 480 770 1400
EVP 3000 2456 1806 750 2300 470 480 780 1400
