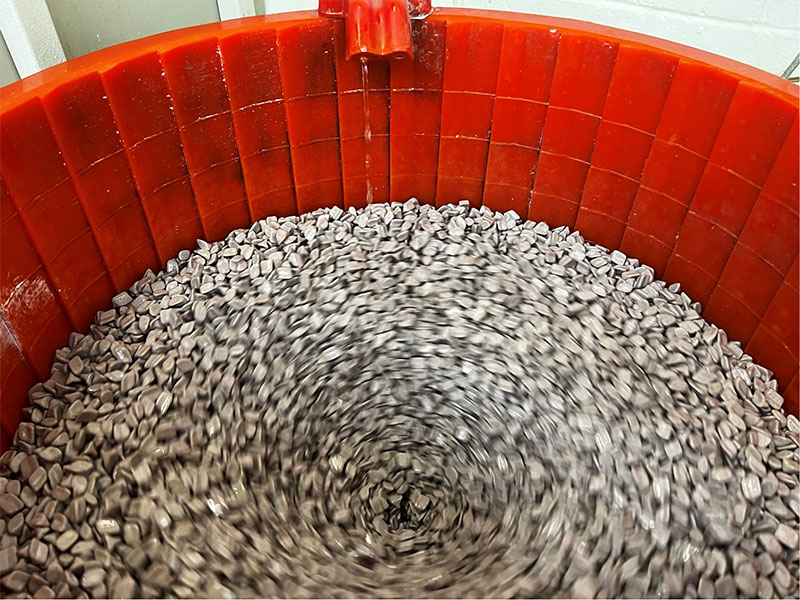

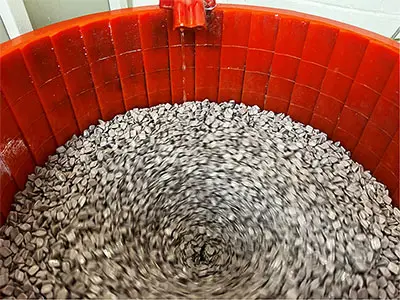

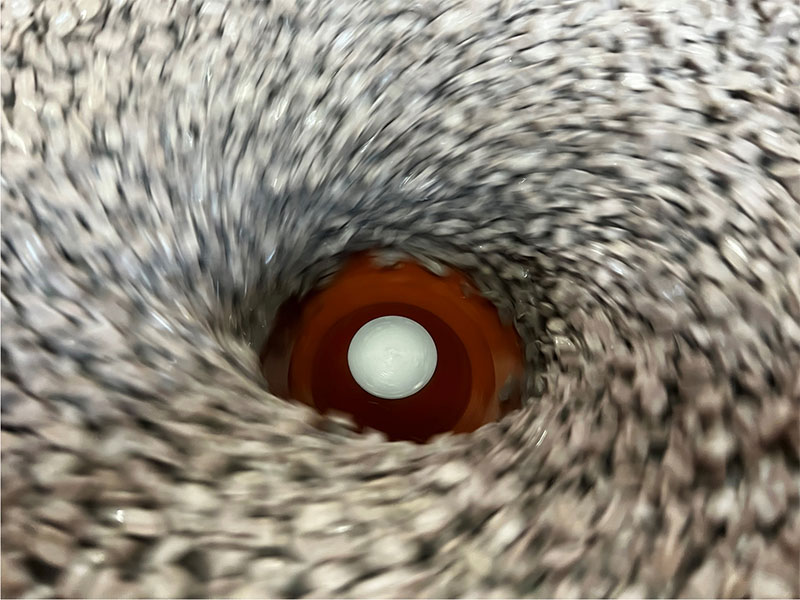

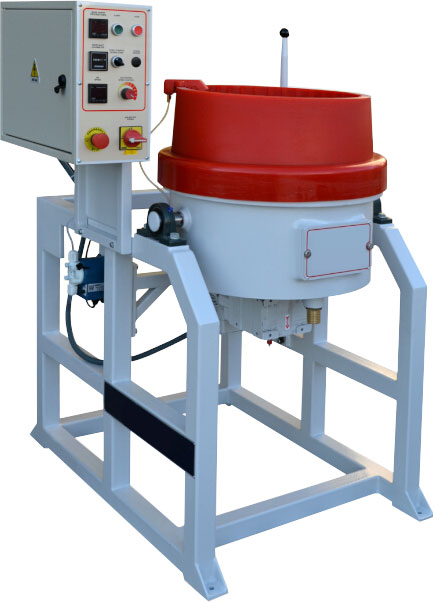

Centrifgual disc finishers

  • Short process time of deburring polishing and radiusing of small and medium size work pieces
  • Highly durable hot-poured polyurethane coated work container and disc
  • Easily changeable gap rings
  • Speed controller with frequency inverter
  • Digital process timer
  • Digital disc speed indicator
  • Turbo-20 and Turbo type machines have dry process models

Technical Details

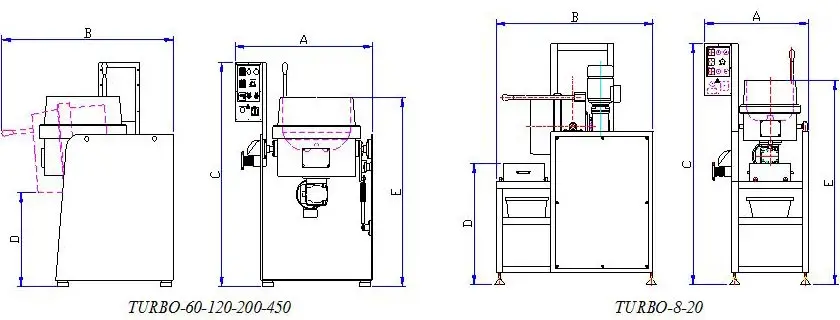

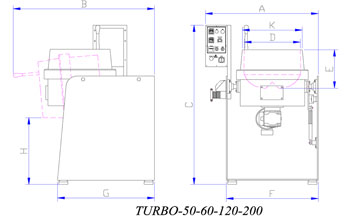

Turbo50 to 200
Move your mouse over image to zoom

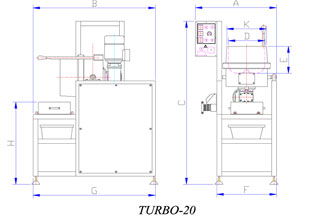

turbo 20
Move your mouse over image to zoom



TypeGross Volume
lt.
Power
kW
Voltage Frequency
AC-V / Hz 3 Phase
VoltageDisc Speed
(rpm)
Weight
kg
TURBO - 20 20 1.5 1.5kW 380 V / 50 Hz 0 - 400 170
TURBO - 50 50 3 3kW 380 V / 50 Hz 0 - 300 325
TURBO - 60 60 3 3kW 380 V / 50 Hz 0 - 300 470
TURBO - 120 120 4 4.18kW 380 V / 50 Hz 0 - 180 680
TURBO - 200 200 7.5 9.7kW 380 V / 50 Hz 0 - 180 1300
TURBO - 450 450. 18.5 21.5kW 380 V / 50 Hz 0 - 120 2200
TypeA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
K
mm
TURBO - 20 760 1145 1630 340 270 560 1145 880 370
TURBO - 50 740 950 1350 425 330 640 725 550 475
TURBO - 60 1000 1250 1500 500 365 820 860 630 530
TURBO - 120 1220 1260 1500 650 430 1000 1040 620 750
TURBO - 200 1470 1400 1940 775 510 1225 1220 700 890
TURBO - 450 1800 1750 1600 950 650 1500 1800 700 1050
