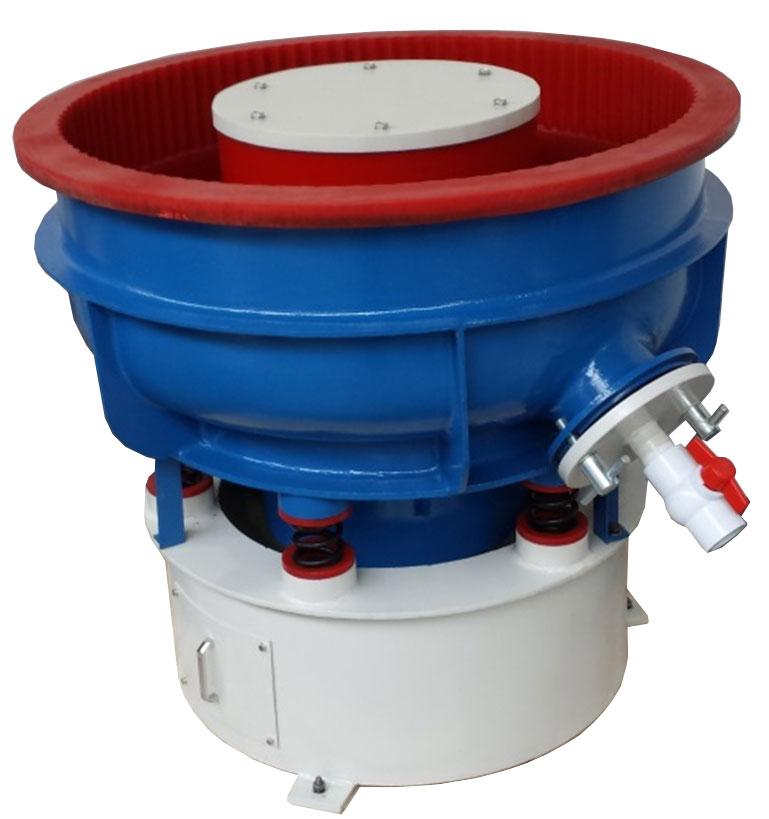

Economy Vibratory Bowls: 75 Litre - 300 Litre

Get in touch with us

We can provide you sample processing, a quote or a call back, just complete the form below. Alternatively call us on 01908 648757




Would you like:


Subscribe to the PDJ Newsletter

processed samples
Process analysis is free of charge at PDJ Vibro Ltd.
Find out more »

Once a deburring and surface finishing process is established the results will be consistent making it ideal for both prototype and batch work. Naturally should you require more than one process the media and compounds can be easily changed or alternatively two or more machines can be linked.


Move your mouse over image to zoom

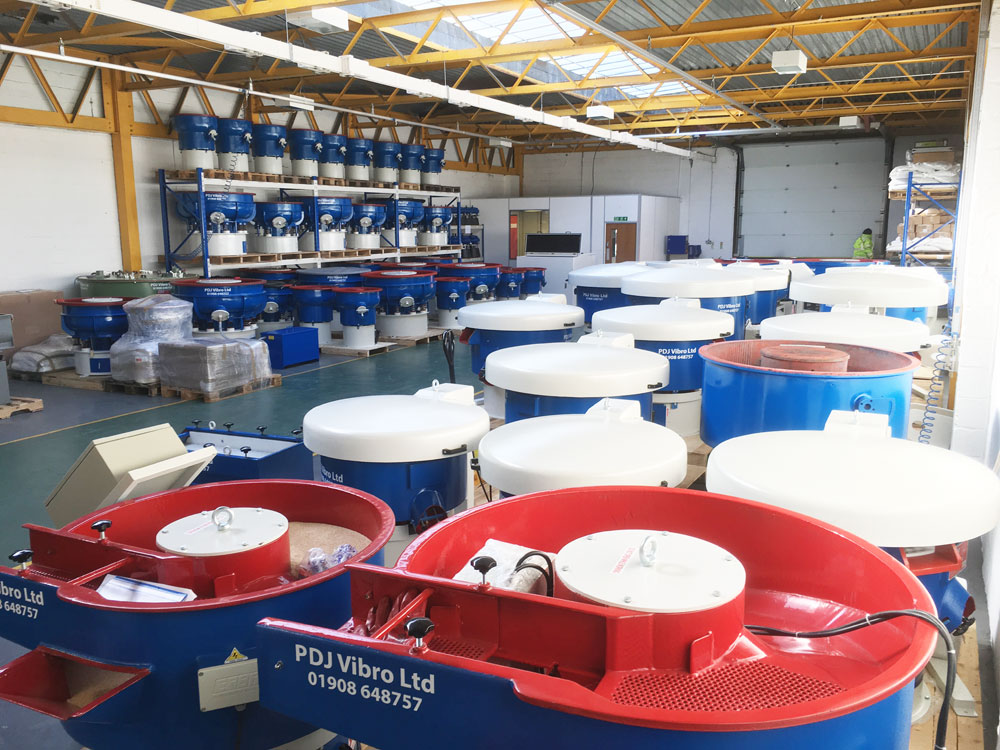

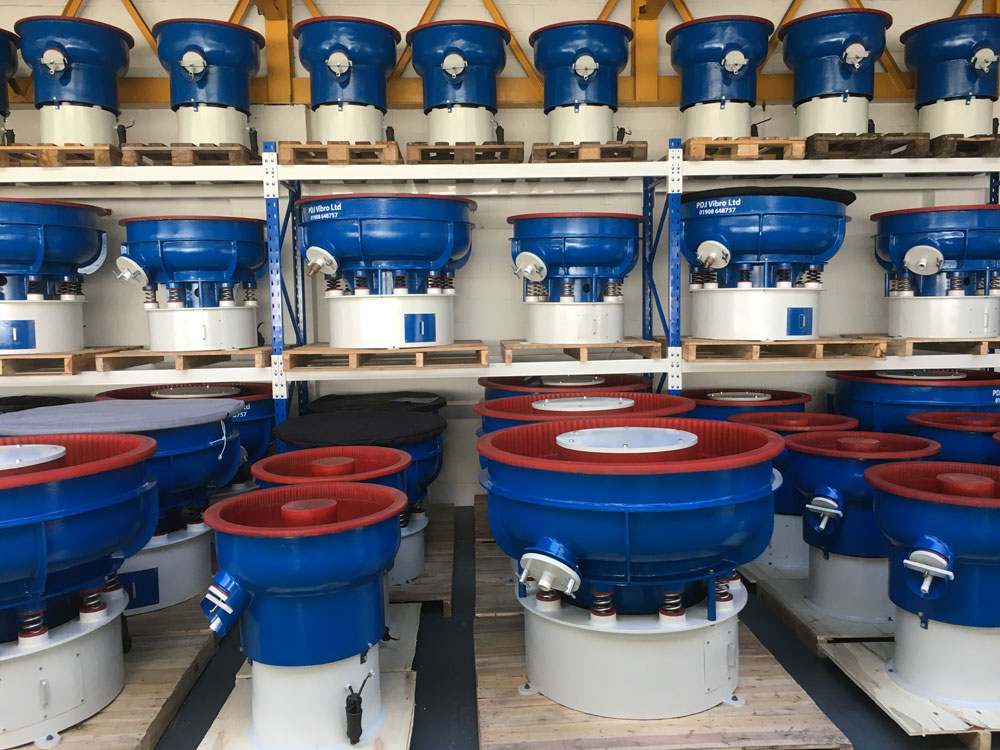

40 Vibratory Bowl Finishers in stock now with 0% Finance

Place an order on one of our economy bowl finishers and pay over 12 months.

  • Finishes include
  • Deburring
  • Surface Improve - Ra 0.03
  • Radius - Polishing
  • Remove scale - Degreasing
  • Superfinishing.
  • Features
  • Cast polyurethane lining
  • Heavy duty - Steel fabrication
  • Vibratory specification motor
  • Adjustable amplitude
  • Unload chute.
  • 12 month Guarantee
  • Benefits
  • Standardised Quality
  • Reduce Labour Cost
  • Nominal Running Cost
  • In house control
  • Applications include: Mild Steel - Stainless Steel - Aluminium - Titanium - Brass - Copper - Precious metals – plastic - Tiles.

Technical data sheet

Model

Chamber
Volume
Litres

Chamber
Width
mm

Chamber
Height
mm

Machine
Diameter
mm

Voltage/
Frequency
Weight

Kg
TBT-75 75 225 270 790 400/50 160
TBT-150 150 210 350 1040 400/50 395
TBT-300 300 290 390 1340 400/50 600
