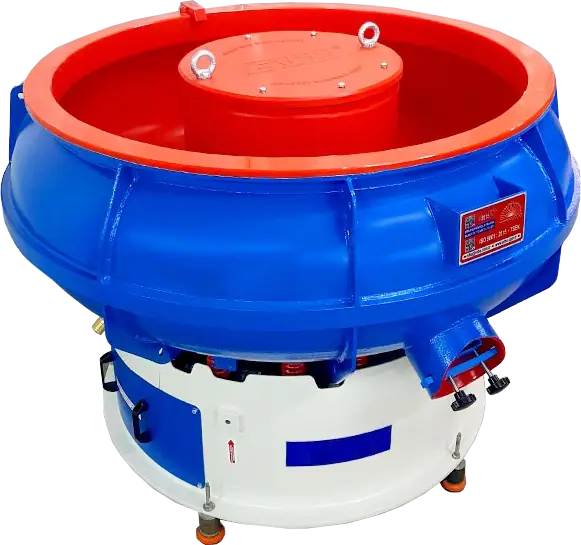

Vibratory Bowl Finishing Machine, without separation

EVP-R
  • Circular vibratory surface finishing machine without integrated separation
  • Serrated inner surface for increased abrasive efficiency
  • Consistent material removal combined with high-quality surface finishing
  • Heavy-duty, specially designed electric vibration motor
  • Continuously adjustable vibration control for process optimisation
  • High-durability, hot-poured polyurethane lining for long service life

Technical details

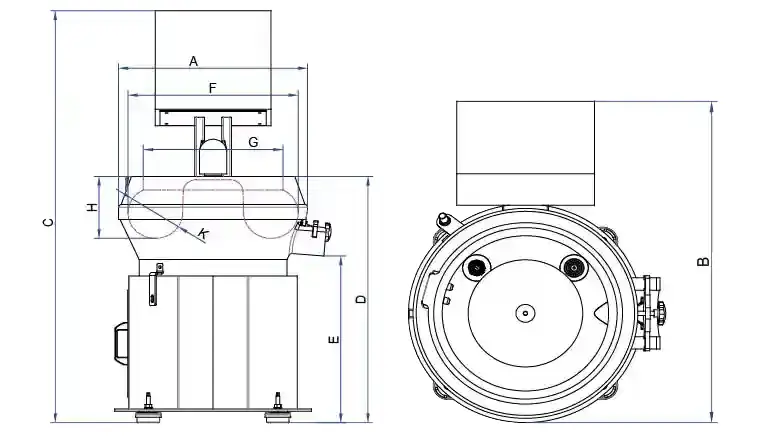

A Series

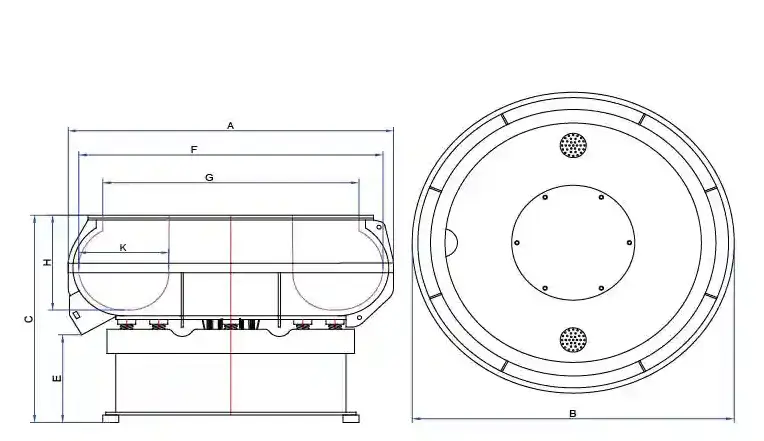

B Series

Type Series Gross Volume
lt.		Power
kW		Weight
kg		 Speed A B C D E F G H K
EVP-R 8 A 8 0.25 80 3000 380 770 1320 730 540 350 300 130 110
EVP-R 15 A 15 0.37/0.50 95 1500/3000 460 820 1320 770 550 425 350 170 137
EVP-R 30 A 30 0.55/0.95 165 1500/3000 590 950 1320 820 555 530 435 205 170
EVP-R 60 A 60 0.95/2.5 190 1500/3000 700 770 780 * 440 670 570 265 220
EVP-R 120 B 120 1.10 340 1500 1010 1050 840 * 420 930 780 307 270
EVP-R 300 B 300 2.20 620 1500 1340 1340 1000 * 450 1240 1040 415 360
EVP-R 600 B 600 4 1040 1500 1625 1625 1110 * 470 1520 1280 510 450
EVP-R 900 B 900 5.5 1420 1500 1890 1890 1170 * 455 1750 1470 570 520
