- Very easy changeable separation unit
- EVP-RA models have high abrasive efficiency and the excellent separation due to integrated ramp
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- Conjunction with other machinery
- Optional pneumatic controlled separation flap
- Optional full automatic process control
- High durable hot-poured polyurethane lining

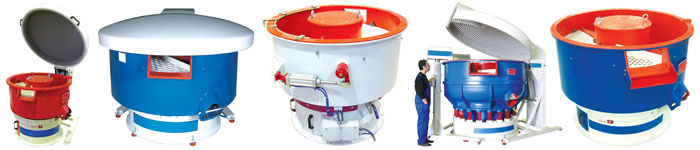

EVP-RA Gallery
-

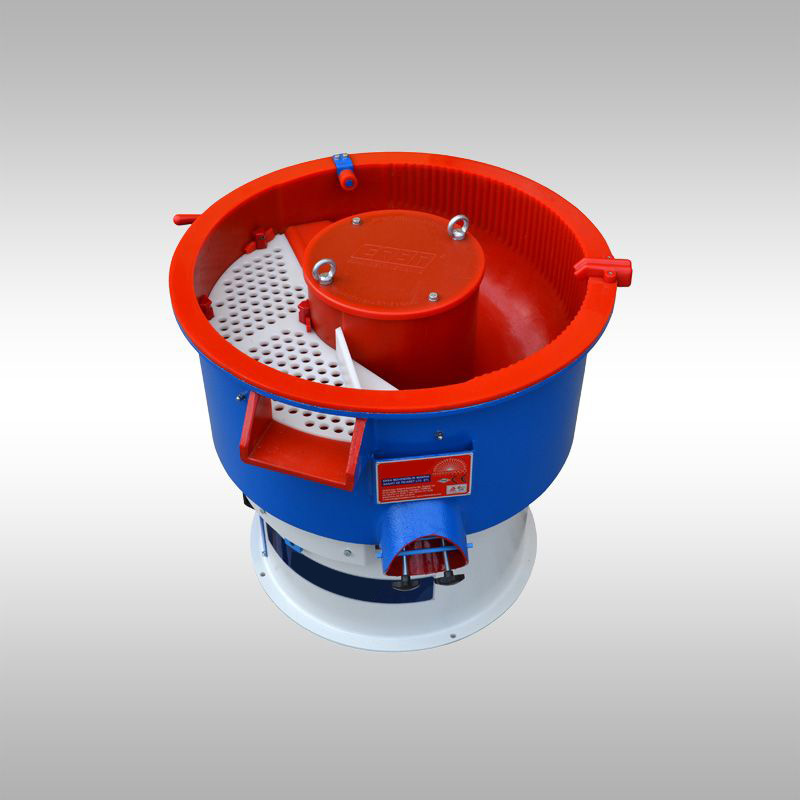

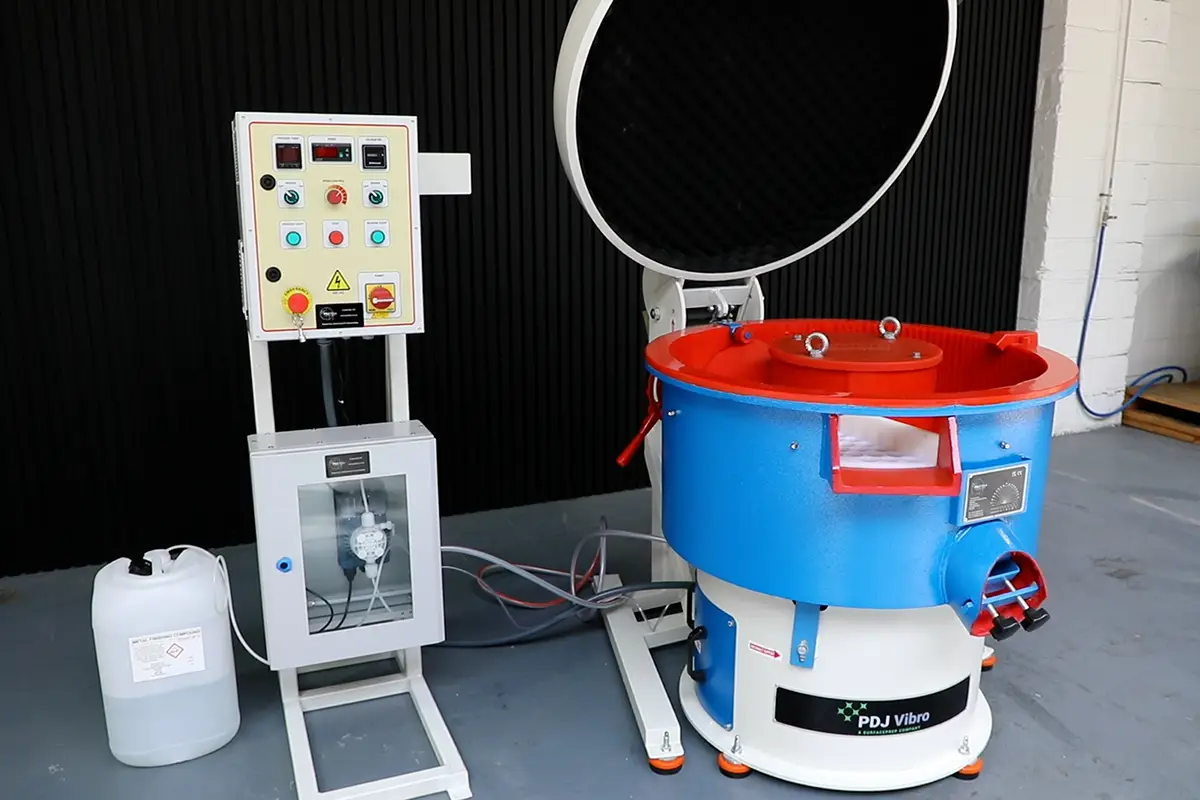

EVP-RA-100
EVP-RA-100
-

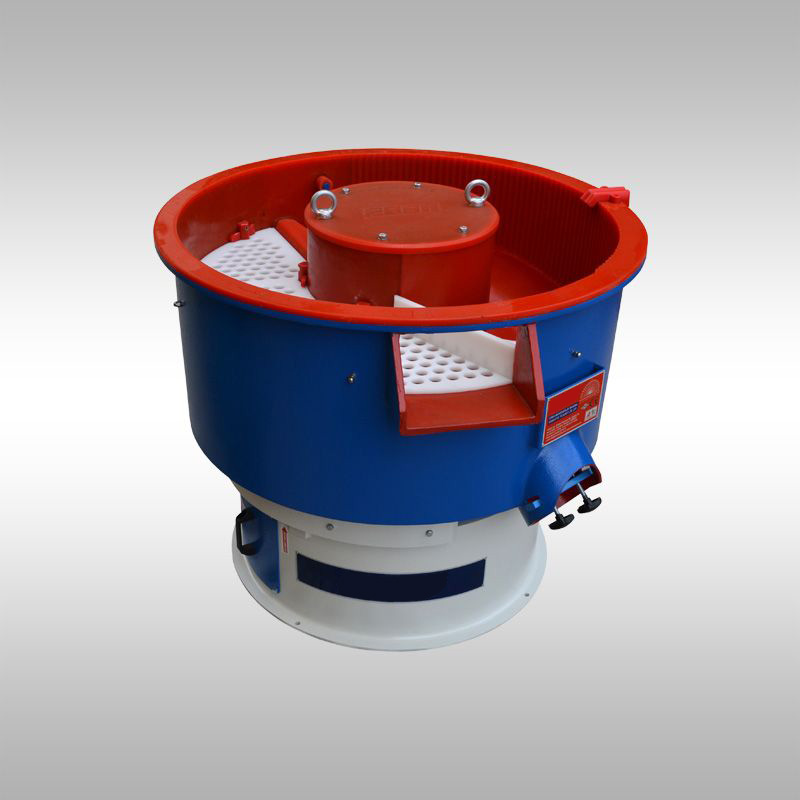

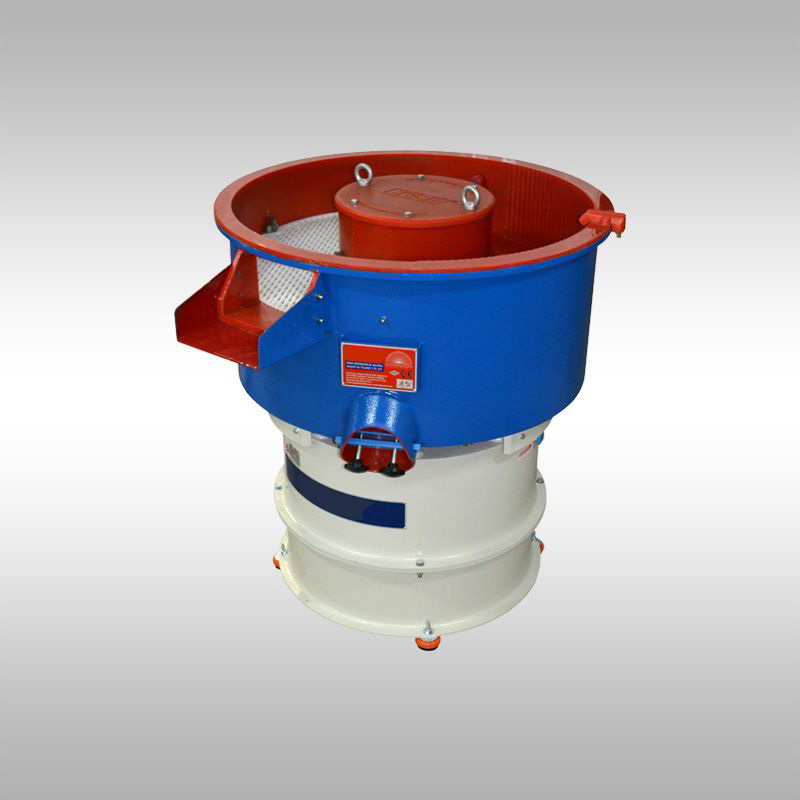

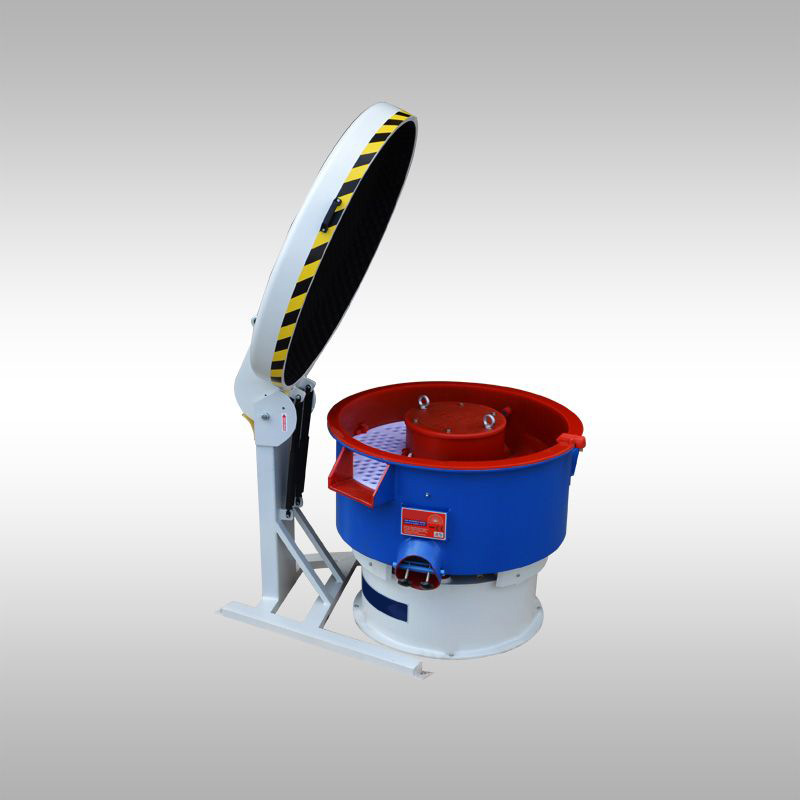

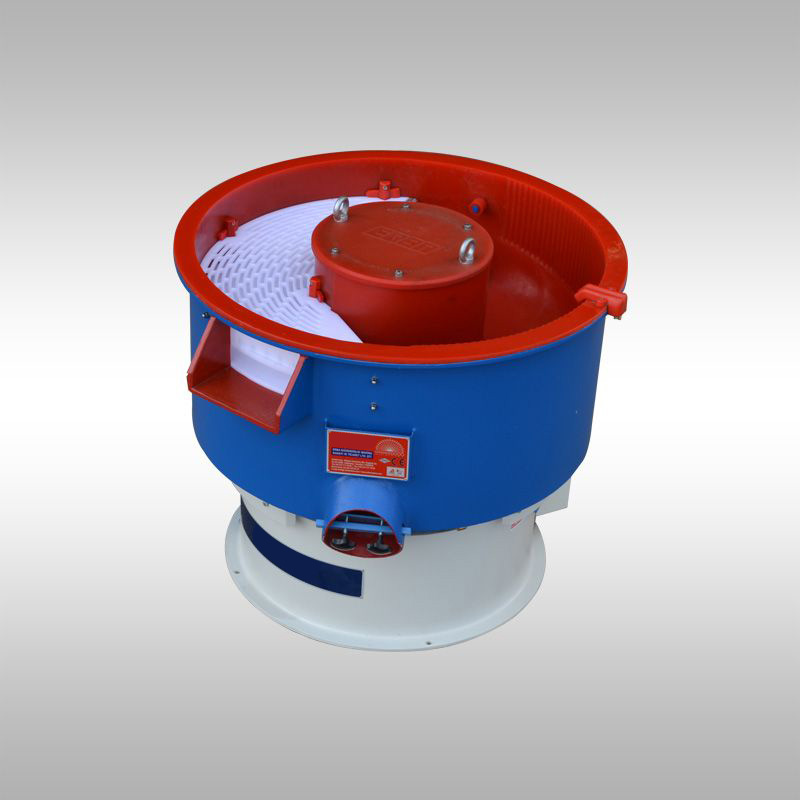

EVP-RA-200
EVP-RA-200
-
EVP-RA-200
EVP-RA-200
-
EVP-RA-200
EVP-RA-200
-
EVP-RA-200
EVP-RA-200
-

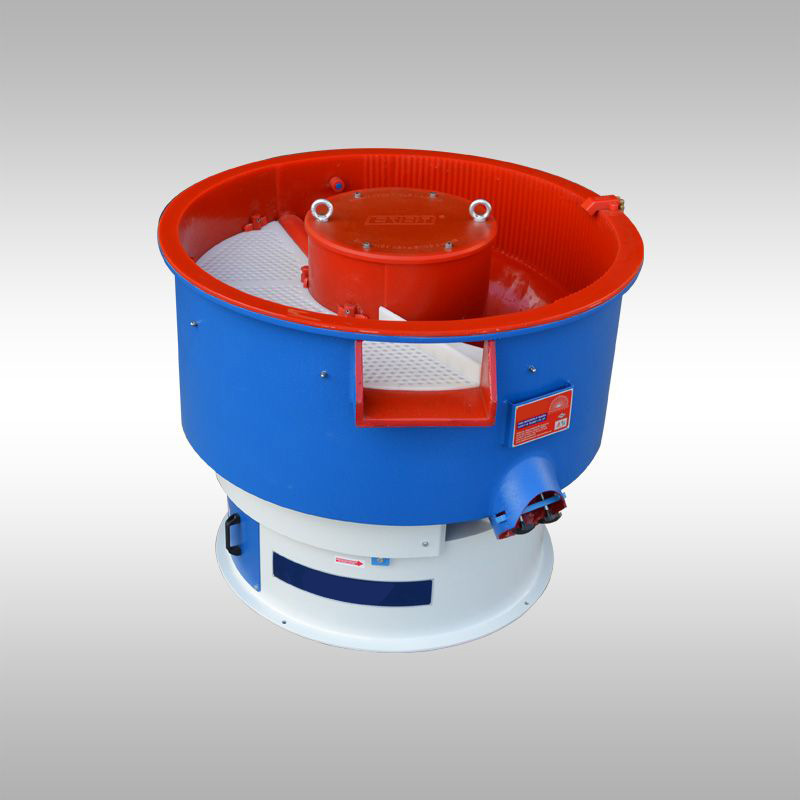

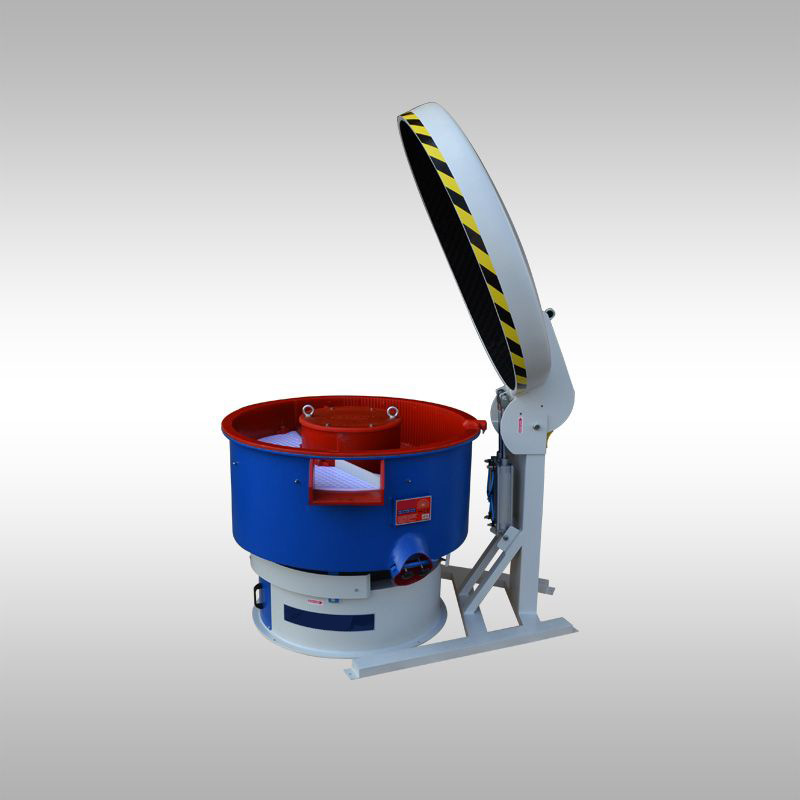

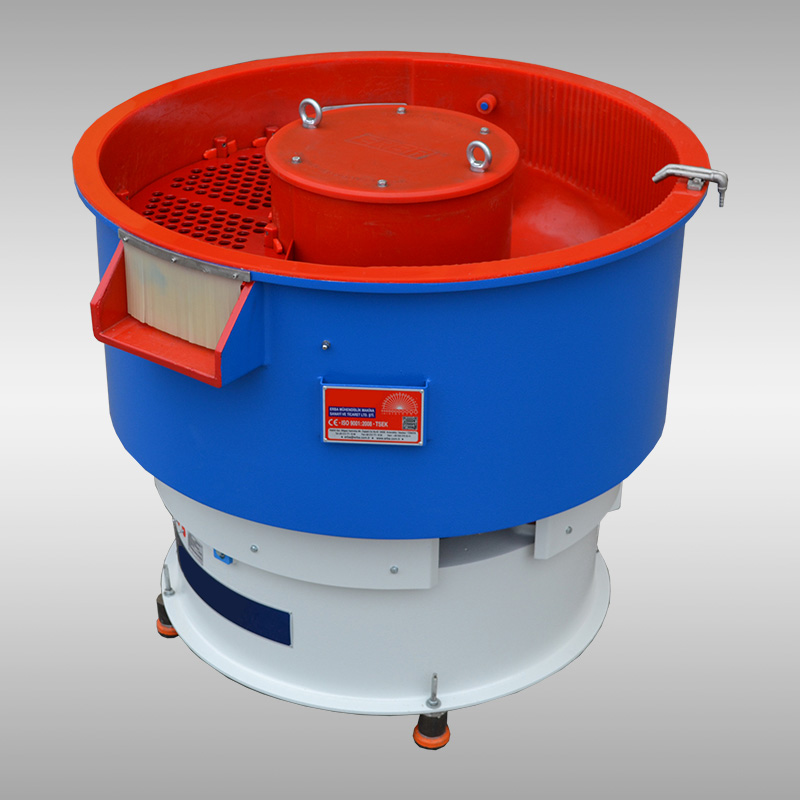

EVP-RA-350
EVP-RA-350
-
EVP-RA-350
EVP-RA-350
-
EVP-RA-350
EVP-RA-350
-

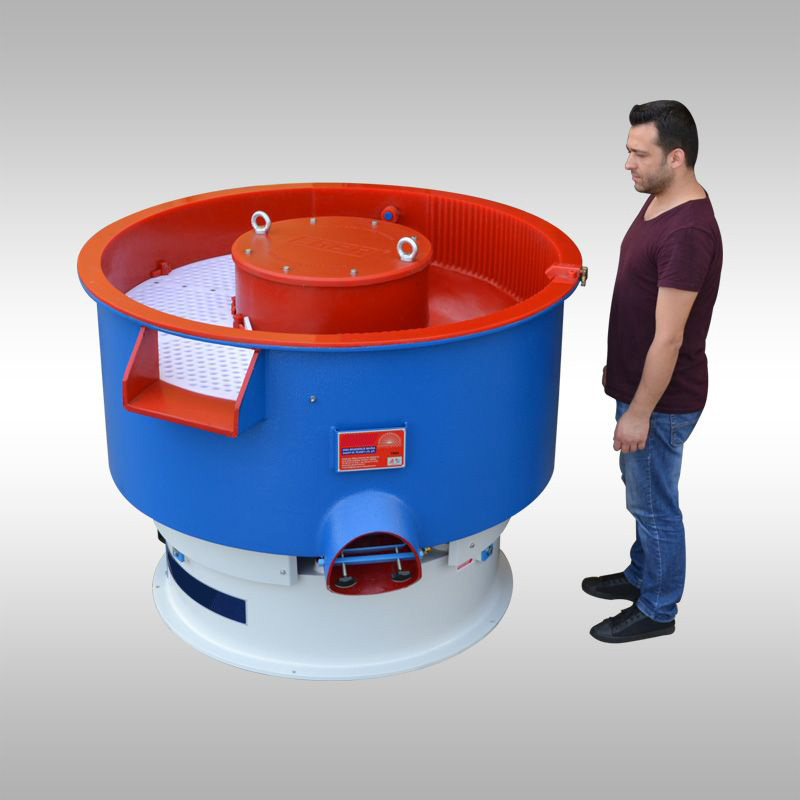

EVP-RA-550
EVP-RA-550
-

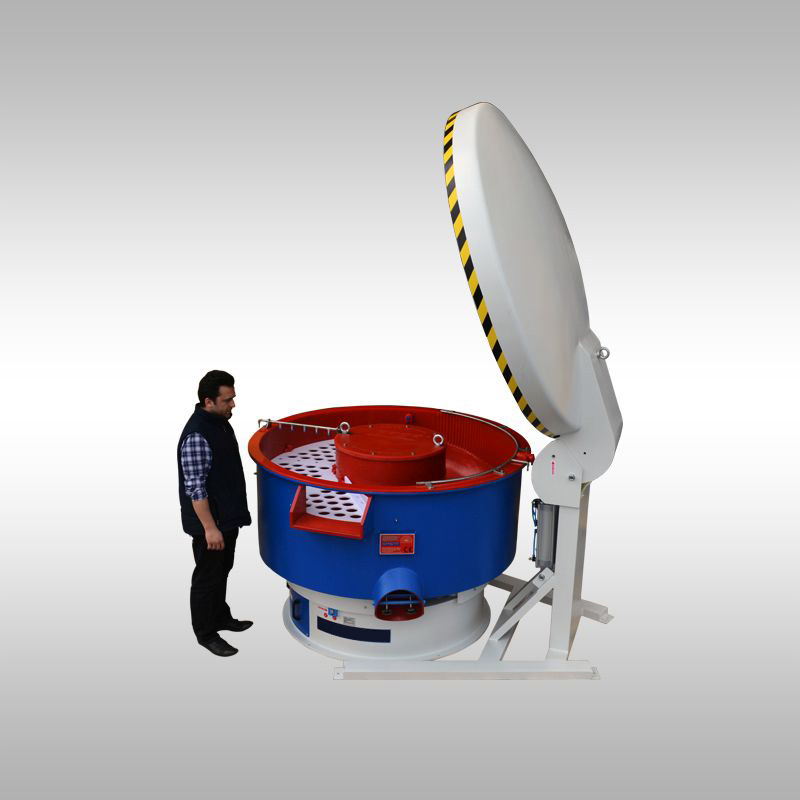

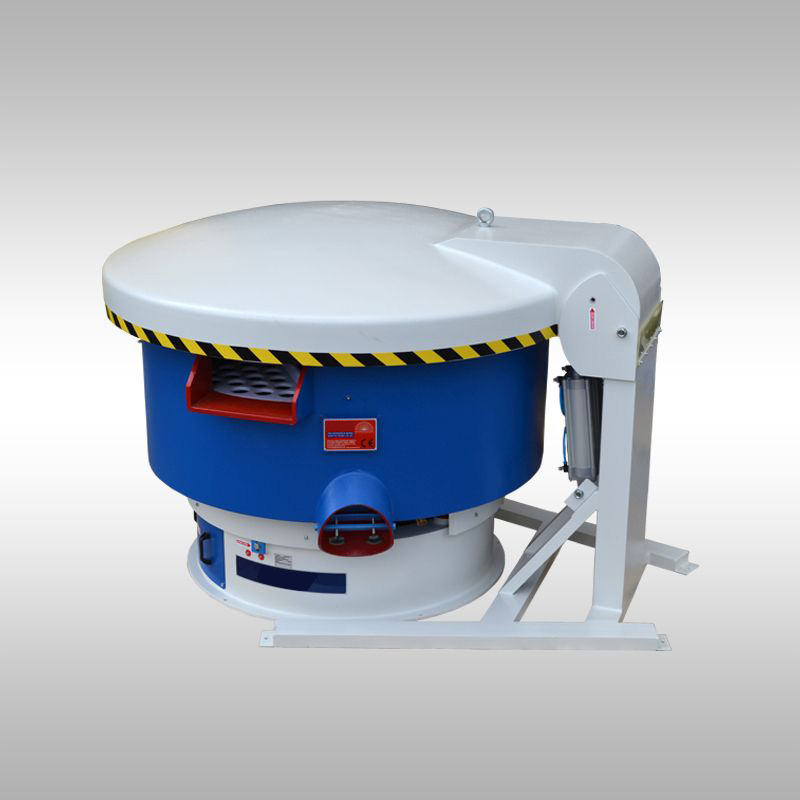

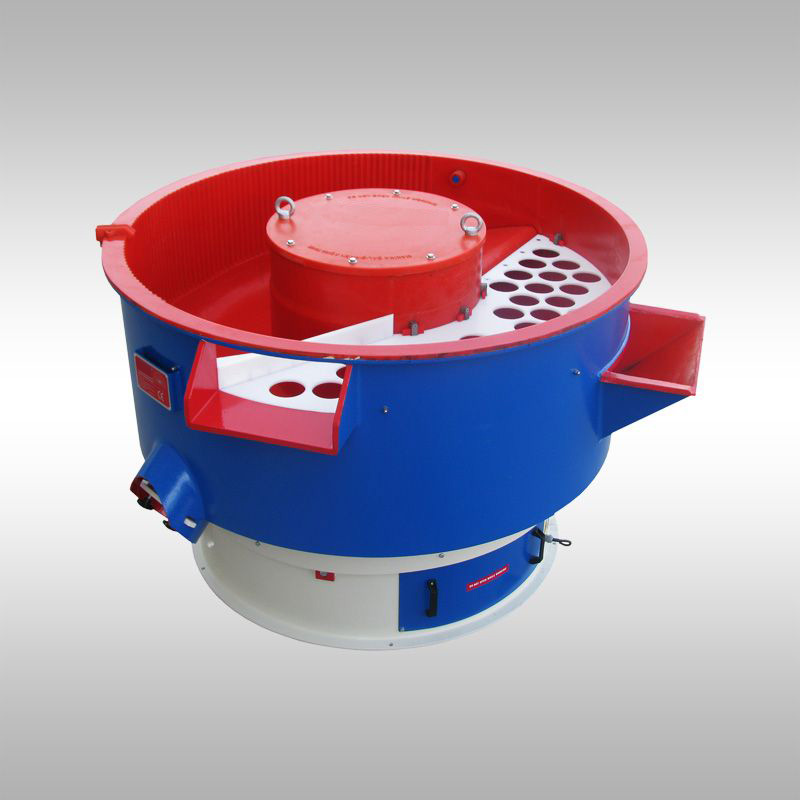

EVP-RA-800
EVP-RA-800
-
EVP-RA-800
EVP-RA-800
-
EVP-RA-800
EVP-RA-800
-

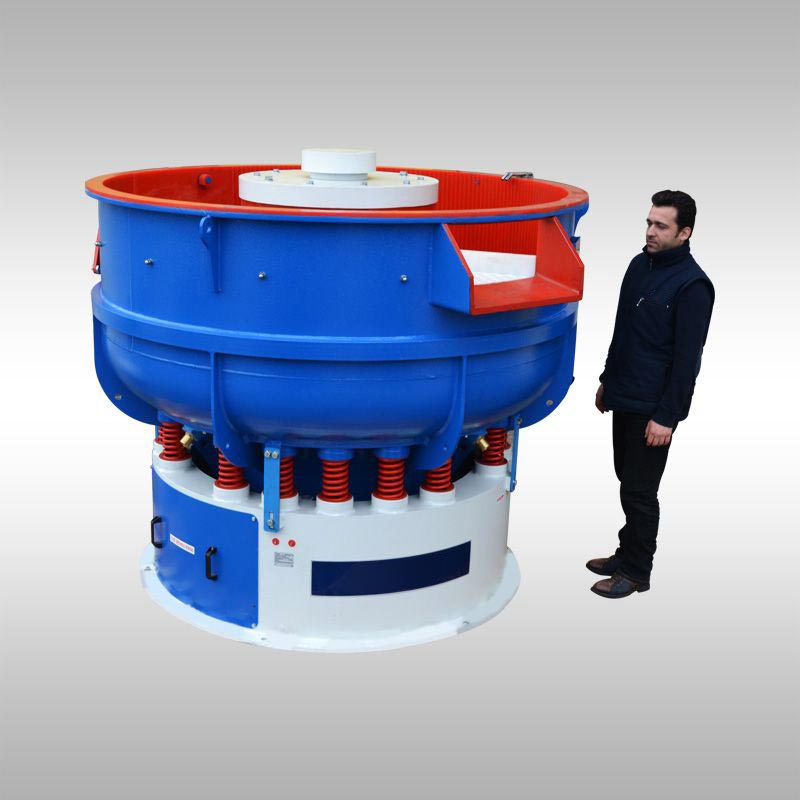

EVP-RA-1700
EVP-RA-1700
View the embedded image gallery online at:
https://www.vibratoryfinishing.co.uk/new-vibratory-bowl/vibratory-bowl-finishing-machine-with-parts-unload-2.html#sigProId3dad6416bc
https://www.vibratoryfinishing.co.uk/new-vibratory-bowl/vibratory-bowl-finishing-machine-with-parts-unload-2.html#sigProId3dad6416bc
Technical details
| Type | Gross Volume lt. | Power kW | Voltage / FrequencyAC-V/Hz 3 phase | Weight kg |
|---|---|---|---|---|
| EVP-RA 100 | 130 | 1.1 | 400 / 50 (*) | 310 |
| EVP-RA 200 | 230 | 1.5 | 400 / 50 (*) | 470 |
| EVP-RA 350 | 385 | 2.2 | 400 / 50 (*) | 680 |
| EVP-RA 550 | 650 | 4 | 400 / 50 (*) | 1170 |
| EVP-RA 800 | 835 | 5.5 | 400 / 50 (*) | 1460 |
| EVP-RA 1700 | 1650 | 11 | 400 / 50 (*) | 3200 |

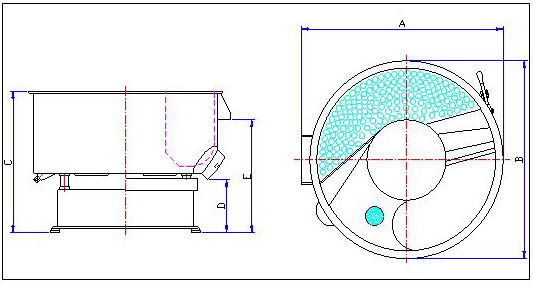

| Type | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| EVP-RA 100 | 990 | 944 | 920 | 430 | 760 |
| EVP-RA 200 | 1190 | 1128 | 990 | 420 | 795 |
| EVP-RA 350 | 1420 | 1330 | 1115 | 400 | 920 |
| EVP-RA 550 | 1620 | 1150 | 1225 | 420 | 975 |
| EVP-RA 800 | 1830 | 1740 | 1225 | 420 | 975 |
| EVP-RA 1700 | 2350 | 2040 | 1730 | 780 | 1415 |
