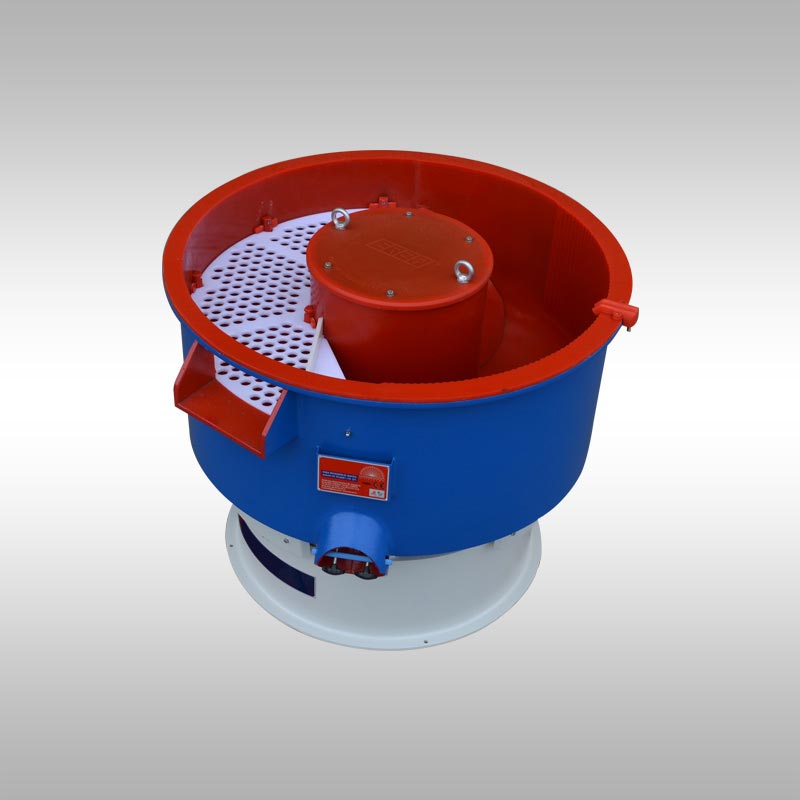

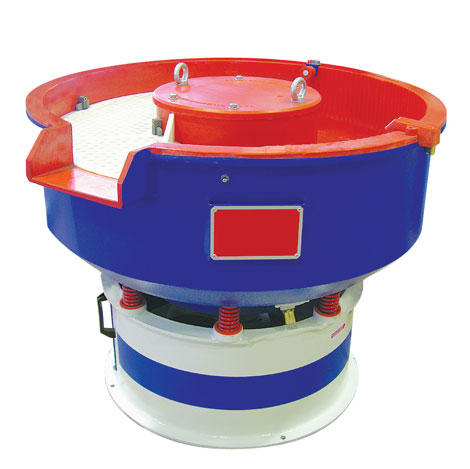

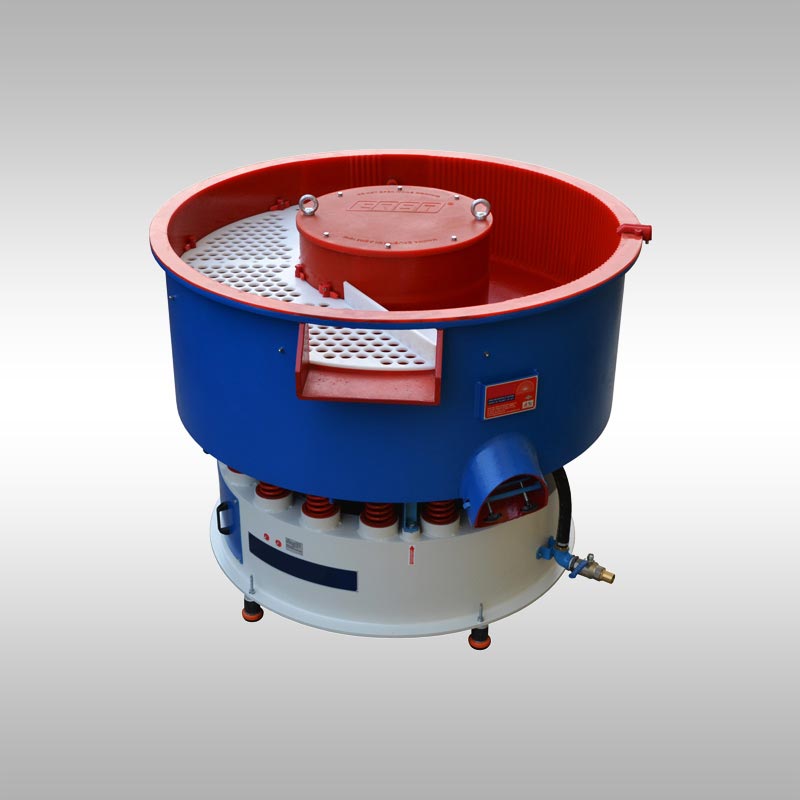

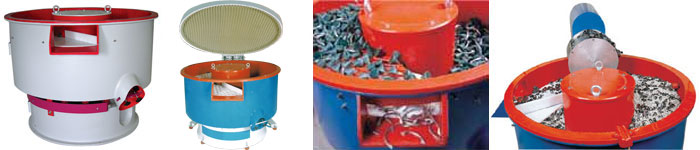

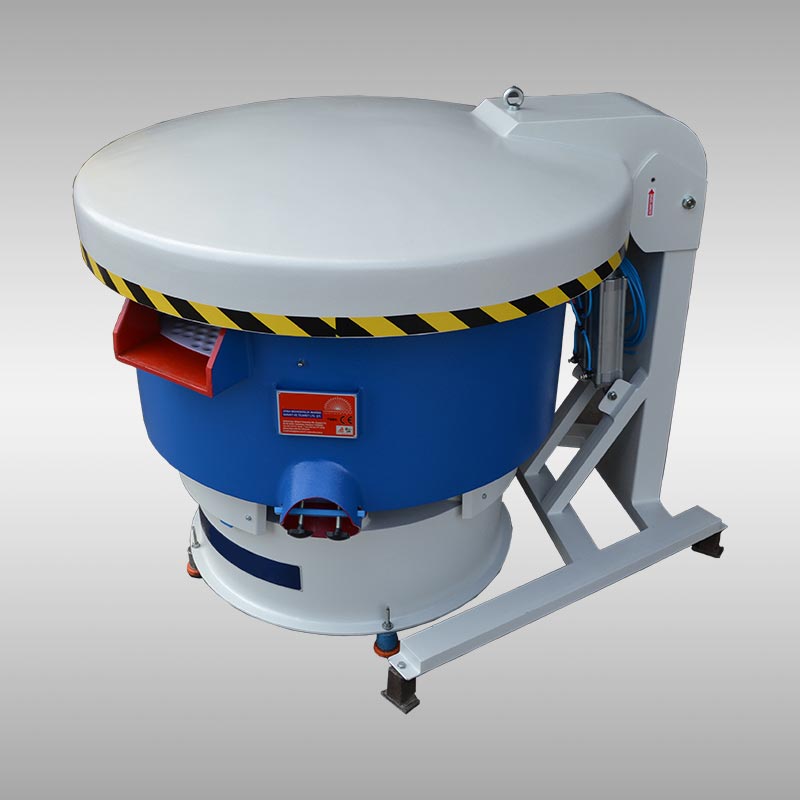

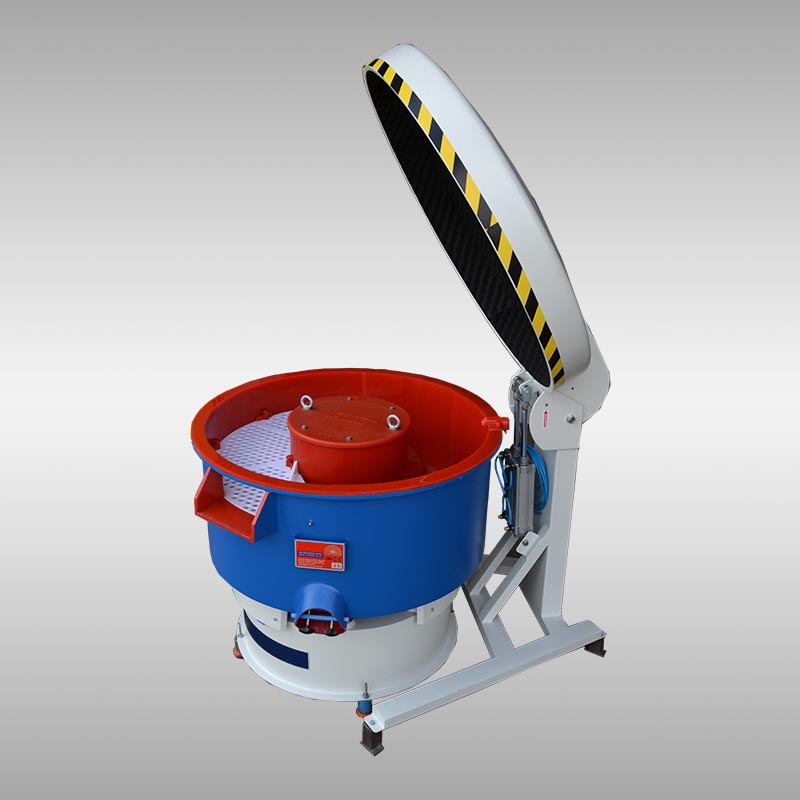

EVP-a vibratory bowl

  • Very easy changeable separation unit
  • Special design heavy-duty electric vibration motor
  • Continuously adjustable vibration control
  • Conjunction with other machinery
  • Optional pneumatic controlled separation flap
  • Optional full automatic process control
  • High durable hot-poured polyurethane lining

Technical Details

Technical bowl details

Download the Datasheet

TypeGross Volume
lt.
Power
kW
Voltage / Frequency
AC-V/Hz 3 phase
Weight
kg

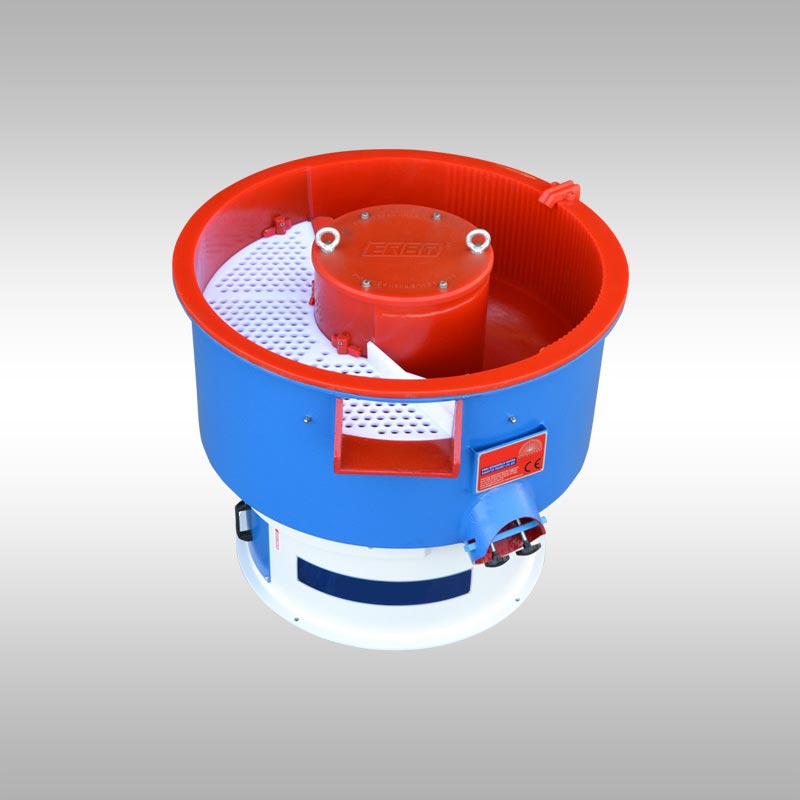

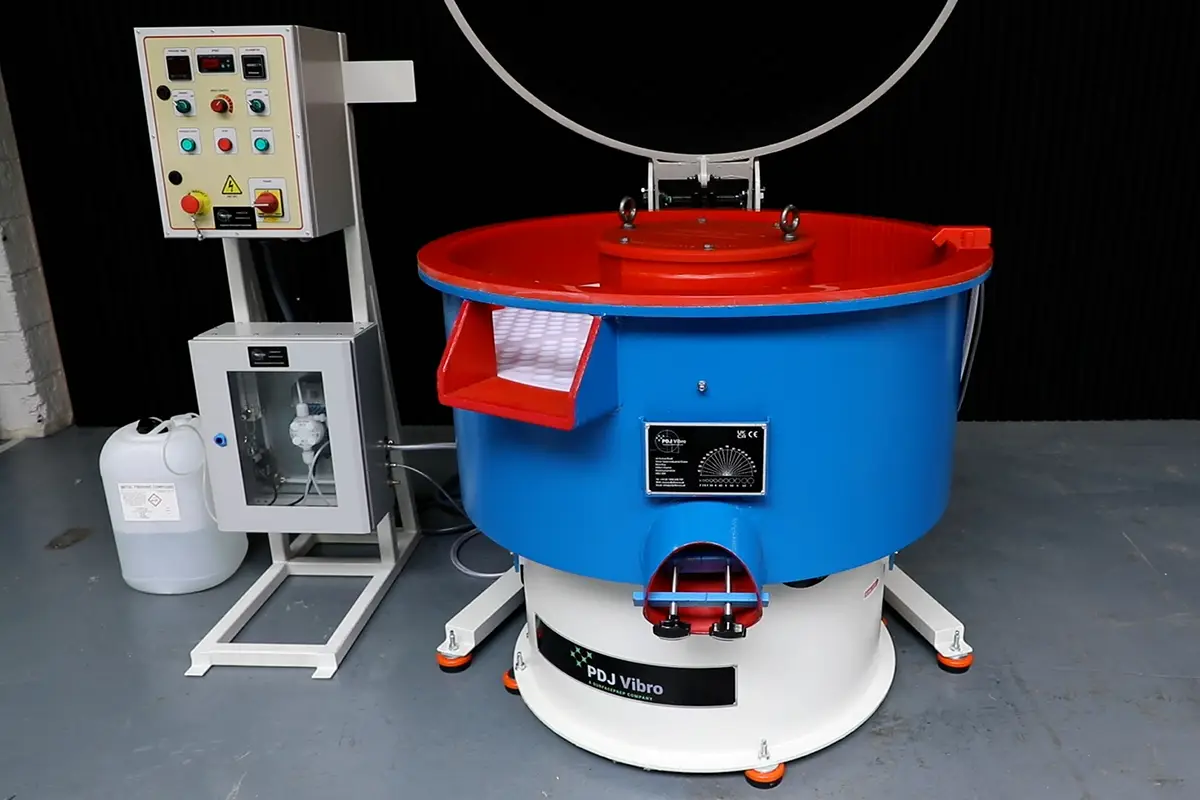

EVP-A 220 240 1.5 400 / 50 (*) 470
EVP-A 350 400 3 400 / 50 (*) 650
EVP-A 550 610 4 400 / 50 (*) 1170

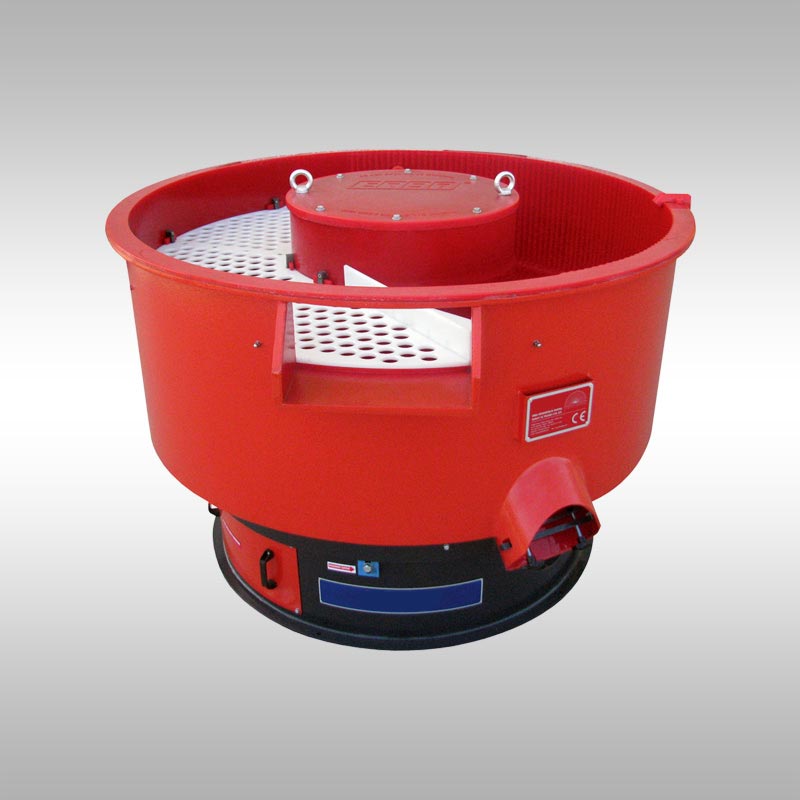

EVP-A 800 1000 5.5 400 / 50 (*) 1350

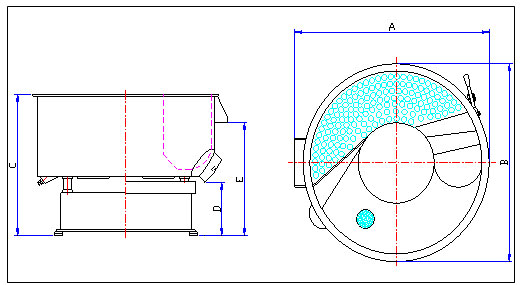

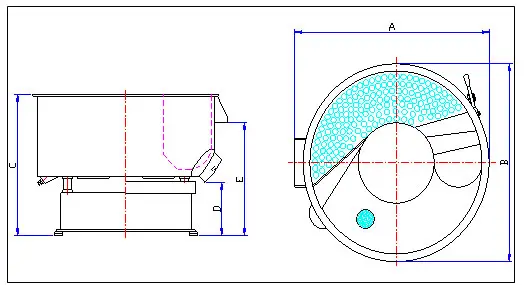

TypeA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
K
mm
L
mm
M
mm
EVP-A 220 1180 810 280 1010 400 375 1120 950 250 780 450
EVP-A 350 1380 1070 340 1210 410 370 1310 1040 300 870 520
EVP-A 550 1540 1230 400 1400 410 350 1530 1160 350 930 610
EVP-A 800 1740 1370 450 1610 410 350 1750 1200 400 940 670
