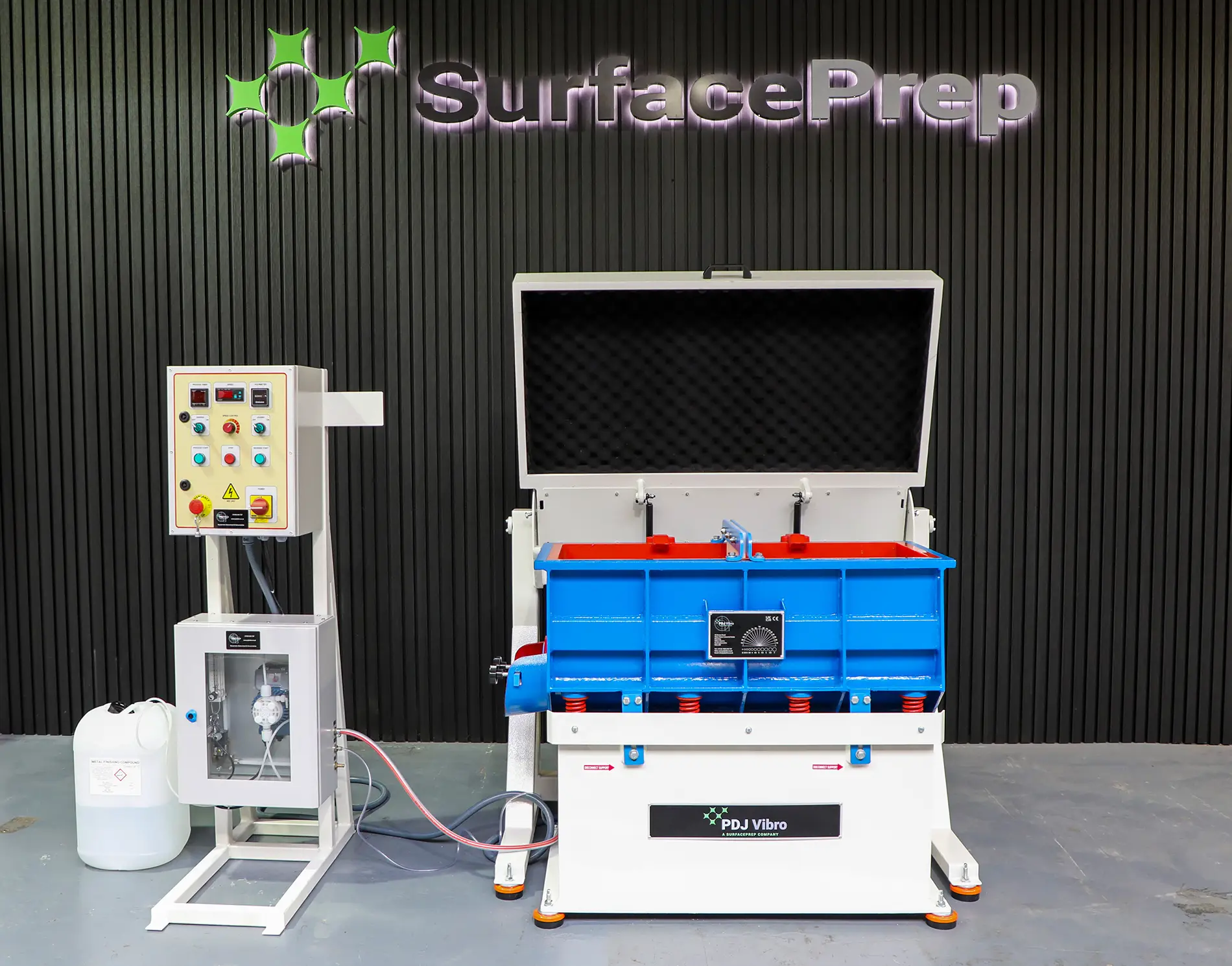

Vibratory Trough Finishing Machines
PDJ Vibro Rectangular Trough Vibrators are designed to process long components and delicate components where part on part damage is likely (chamber can be sectioned with divider plates).
- High abrasive efficiency is always combined with a good surface finishing
- Specially designed heavy-duty electric vibration motor
- Continuously adjustable vibration control
- High durable hot-poured polyurethane lining
- EVT-130 model is available with 3000 rpm vibrator motor for ball burnishing
- Machines are available with optional divider devices
Optional features include:
- PLC Controls.
- Variable speed control.
- Acoustic suppression covers.
- Chemical additive dosing.
- Effluent control.
EVT / EVT-R Technical Details
EVT
EVT-R
| Tip Type | Type A | Type C | Type D | Speed | Gross Volume ltrs | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |  |  | 1500 rpm | 3000 rpm | ||||||||||||
| EVT-20 | * | * | 20 | 0.55 | 400 / 50 (*) | 90 | 785 | 385 | 600 | 520 | 165 | 210 | 390 | |||
| EVT-50 | * | * | 50 | 2.2 | 400 / 50 (*) | 300 | 960 | 535 | 1140 | 750 | 255 | 325 | 760 | |||
| EVT-80 | * | * | 80 | 0.75 | 400 / 50 (*) | 110 | 1055 | 646 | 940 | 850 | 275 | 345 | 600 | |||
| EVT-130 | * | * | 130 | 1.1 | 400 / 50 (*) | 330 | 1160 | 620 | 930 | 960 | 345 | 410 | 480 | |||
| EVT-145 | * | * | 145 | 1.1 | 400 / 50 (*) | 440 | 1300 | 620 | 930 | 1100 | 345 | 410 | 480 | |||
| EVT-170 | * | * | 170 | 1.1 | 400 / 50 (*) | 470 | 1500 | 620 | 930 | 1300 | 345 | 410 | 480 | |||
| EVT-250 | * | * | 250 | 2.2 | 400 / 50 (*) | 600 | 1785 | 775 | 1190 | 1500 | 390 | 450 | 665 | |||
| EVT-R 320 | * | * | * | 320 | 2.2 | 400 / 50 (*) | 770 | 1445 | 800 | 1160 | 1220 | 510 | 550 | 555 | ||
| EVT-R 370 | * | * | 370 | 3 | 400 / 50 (*) | 790 | 1535 | 1050 | 1200 | 1300 | 590 | 590 | 500 | |||
| EVT-380 | * | * | 380 | 3 | 400 / 50 (*) | 850 | 1715 | 800 | 1160 | 1520 | 510 | 550 | 555 | |||
| EVT-400 | * | * | 400 | 4 | 400 / 50 (*) | 950 | 2200 | 800 | 1170 | 2000 | 400 | 500 | 600 | |||
| EVT-420 | * | * | 420 | 3 | 400 / 50 (*) | 990 | 1925 | 800 | 110 | 1700 | 510 | 550 | 600 | |||
| EVT-475 | * | * | 475 | 4 | 400 / 50 (*) | 950 | 1445 | 914 | 1210 | 1220 | 610 | 610 | 545 | |||
| EVT-500 | * | * | 500 | 5.5 | 400 / 50 (*) | 1080 | 1750 | 914 | 1210 | 1525 | 610 | 610 | 545 | |||
| EVT-R 600 | * | * | * | 600 | 5.5 | 400 / 50 (*) | 1270 | 2165 | 906 | 1210 | 1925 | 600 | 585 | 575 | ||
| EVT-800 | * | * | 840 | 5.5 | 400 / 50 (*) | 1600 | 1745 | 1034 | 1530 | 1500 | 750 | 840 | 625 | |||
BPT Technical Details
BPT Gallery
BPT models is available with 3000 rpm vibrator motor for ball burnishing.
| Tip Type | Type A | Type B | Type C | Speed | Gross Volume ltrs | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | | 1500 rpm | 3000 rpm | ||||||||||||
| BPT-80 | * | * | 80 | 2x1.5 | 400 / 50 (*) | 630 | 1990 | 770 | 840 | 850 | 275 | 345 | - | |||
| BPT-100 | * | * | 100 | 2x1.1 | 400 / 50 (*) | 500 | 2600 | 515 | 890 | 1500 | 255 | 325 | - | |||
| BPT-130 | * | * | 130 | 2x2.2 | 400 / 50 (*) | 660 | 2200 | 760 | 1095 | 960 | 345 | 410 | - | |||
| BPT-250 | * | * | 250 | 2x5.5 | 400 / 50 (*) | 1425 | 2925 | 700 | 1010 | 1500 | 390 | 450 | - | |||
| BPT-320 | * | * | 320 | 2x5.5 | 400 / 50 (*) | 1800 | 2950 | 1100 | 1170 | 1230 | 510 | 550 | - | |||
| BPT-700 | * | * | 700 | 2x7.5 | 400 / 50 (*) | 2370 | 2650 | 1190 | 1360 | 1100 | 800 | 850 | 470 | |||
| BPT-1000 | * | 1000 | 2x5.5 | 400 / 50 (*) | 2150 | 3415 | 1170 | 1255 | 1830 | 760 | 810 | 270 | ||||
| BPT-1100 | * | 1100 | 2x7.5 | 400 / 50 (*) | 2740 | 3810 | 1170 | 1400 | 2135 | 760 | 760 | 390 | ||||
| BPT-2200 | * | 2200 | 2x11 | 400 / 50 (*) | 3100 | 4300 | 1445 | 1500 | 2200 | 1100 | 990 | 350 | ||||
Economy Range
Rectangle Vibratory Finishing Machine T-85 / T-184
- 1270mm round discharge door, with discharge trough
- Heavy gauge steel construction coated with rust-preventative enamel
- Sound reduction cover and anchor bolts
- Polyurethane liner made from the finest quality material available and oven cured
- Optional fluid circulation system including pump, fluid container, all necessary hoses and fittings
- Dividers available for both machines
| Inside Tank Dimensions | Power HP / kW | Voltage/ Frequency AC - V/Hz | Weight kg | |||
| Length mm | Depth mm | Height mm | ||||
| T-85 | 787 | 330 | 343 | 1 / 0.75 | Single phase 110/60 220/60 | 181 |
| T-184 | 889 | 476 | 457 | 3 / 2.24 | Three Phase 230/50 440/50 | 318 |
Vibratory Trough Finishing Machines
PDJ Vibro Rectangular Trough Vibrators are designed to process long components and delicate components where part on part damage is likely (chamber can be sectioned with divider plates).
- High abrasive efficiency is always combined with a good surface finishing
- Specially designed heavy-duty electric vibration motor
- Continuously adjustable vibration control
- High durable hot-poured polyurethane lining
- EVT-130 model is available with 3000 rpm vibrator motor for ball burnishing
- Machines are available with optional divider devices
Optional features include:
- PLC Controls.
- Variable speed control.
- Acoustic suppression covers.
- Chemical additive dosing.
- Effluent control.
EVT / EVT-R Technical Details
EVT
EVT-R
| Tip Type | Type A | Type C | Type D | Speed | Gross Volume ltrs | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | | 1500 rpm | 3000 rpm | ||||||||||||
| EVT-20 | * | * | 20 | 0.55 | 400 / 50 (*) | 90 | 785 | 385 | 600 | 520 | 165 | 210 | 390 | |||
| EVT-50 | * | * | 50 | 2.2 | 400 / 50 (*) | 300 | 960 | 535 | 1140 | 750 | 255 | 325 | 760 | |||
| EVT-80 | * | * | 80 | 0.75 | 400 / 50 (*) | 110 | 1055 | 646 | 940 | 850 | 275 | 345 | 600 | |||
| EVT-130 | * | * | 130 | 1.1 | 400 / 50 (*) | 330 | 1160 | 620 | 930 | 960 | 345 | 410 | 480 | |||
| EVT-145 | * | * | 145 | 1.1 | 400 / 50 (*) | 440 | 1300 | 620 | 930 | 1100 | 345 | 410 | 480 | |||
| EVT-170 | * | * | 170 | 1.1 | 400 / 50 (*) | 470 | 1500 | 620 | 930 | 1300 | 345 | 410 | 480 | |||
| EVT-250 | * | * | 250 | 2.2 | 400 / 50 (*) | 600 | 1785 | 775 | 1190 | 1500 | 390 | 450 | 665 | |||
| EVT-R 320 | * | * | * | 320 | 2.2 | 400 / 50 (*) | 770 | 1445 | 800 | 1160 | 1220 | 510 | 550 | 555 | ||
| EVT-R 370 | * | * | 370 | 3 | 400 / 50 (*) | 790 | 1535 | 1050 | 1200 | 1300 | 590 | 590 | 500 | |||
| EVT-380 | * | * | 380 | 3 | 400 / 50 (*) | 850 | 1715 | 800 | 1160 | 1520 | 510 | 550 | 555 | |||
| EVT-400 | * | * | 400 | 4 | 400 / 50 (*) | 950 | 2200 | 800 | 1170 | 2000 | 400 | 500 | 600 | |||
| EVT-420 | * | * | 420 | 3 | 400 / 50 (*) | 990 | 1925 | 800 | 110 | 1700 | 510 | 550 | 600 | |||
| EVT-475 | * | * | 475 | 4 | 400 / 50 (*) | 950 | 1445 | 914 | 1210 | 1220 | 610 | 610 | 545 | |||
| EVT-500 | * | * | 500 | 5.5 | 400 / 50 (*) | 1080 | 1750 | 914 | 1210 | 1525 | 610 | 610 | 545 | |||
| EVT-R 600 | * | * | * | 600 | 5.5 | 400 / 50 (*) | 1270 | 2165 | 906 | 1210 | 1925 | 600 | 585 | 575 | ||
| EVT-800 | * | * | 840 | 5.5 | 400 / 50 (*) | 1600 | 1745 | 1034 | 1530 | 1500 | 750 | 840 | 625 | |||
BPT Technical Details
BPT Gallery
BPT models is available with 3000 rpm vibrator motor for ball burnishing.
| Tip Type | Type A | Type B | Type C | Speed | Gross Volume ltrs | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg | A mm | B mm | C mm | D mm | E mm | F mm | G mm | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| | | 1500 rpm | 3000 rpm | ||||||||||||
| BPT-80 | * | * | 80 | 2x1.5 | 400 / 50 (*) | 630 | 1990 | 770 | 840 | 850 | 275 | 345 | - | |||
| BPT-100 | * | * | 100 | 2x1.1 | 400 / 50 (*) | 500 | 2600 | 515 | 890 | 1500 | 255 | 325 | - | |||
| BPT-130 | * | * | 130 | 2x2.2 | 400 / 50 (*) | 660 | 2200 | 760 | 1095 | 960 | 345 | 410 | - | |||
| BPT-250 | * | * | 250 | 2x5.5 | 400 / 50 (*) | 1425 | 2925 | 700 | 1010 | 1500 | 390 | 450 | - | |||
| BPT-320 | * | * | 320 | 2x5.5 | 400 / 50 (*) | 1800 | 2950 | 1100 | 1170 | 1230 | 510 | 550 | - | |||
| BPT-700 | * | * | 700 | 2x7.5 | 400 / 50 (*) | 2370 | 2650 | 1190 | 1360 | 1100 | 800 | 850 | 470 | |||
| BPT-1000 | * | 1000 | 2x5.5 | 400 / 50 (*) | 2150 | 3415 | 1170 | 1255 | 1830 | 760 | 810 | 270 | ||||
| BPT-1100 | * | 1100 | 2x7.5 | 400 / 50 (*) | 2740 | 3810 | 1170 | 1400 | 2135 | 760 | 760 | 390 | ||||
| BPT-2200 | * | 2200 | 2x11 | 400 / 50 (*) | 3100 | 4300 | 1445 | 1500 | 2200 | 1100 | 990 | 350 | ||||
Economy Range
Rectangle Vibratory Finishing Machine T-85 / T-184
- 1270mm round discharge door, with discharge trough
- Heavy gauge steel construction coated with rust-preventative enamel
- Sound reduction cover and anchor bolts
- Polyurethane liner made from the finest quality material available and oven cured
- Optional fluid circulation system including pump, fluid container, all necessary hoses and fittings
- Dividers available for both machines
| Inside Tank Dimensions | Power HP / kW | Voltage/ Frequency AC - V/Hz | Weight kg | |||
| Length mm | Depth mm | Height mm | ||||
| T-85 | 787 | 330 | 343 | 1 / 0.75 | Single phase 110/60 220/60 | 181 |
| T-184 | 889 | 476 | 457 | 3 / 2.24 | Three Phase 230/50 440/50 | 318 |
Vibratory Bowl Finishing Machine, with parts unload
- Very easy changeable separation unit
- EVP-RA models have high abrasive efficiency and the excellent separation due to integrated ramp
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- Conjunction with other machinery
- Optional pneumatic controlled separation flap
- Optional full automatic process control
- High durable hot-poured polyurethane lining
Technical details
| Type | Gross Volume lt. | Power kW | Voltage / FrequencyAC-V/Hz 3 phase | Weight kg |
|---|---|---|---|---|
| EVP-RA 100 | 130 | 1.1 | 400 / 50 (*) | 360 |
| EVP-RA 200 | 230 | 1.5 | 400 / 50 (*) | 490 |
| EVP-RA 315 | 385 | 3 | 400 / 50 (*) | 670 |
| EVP-RA 550 | 550 | 4 | 400 / 50 (*) | 1100 |
| EVP-RA 800 | 835 | 5.5 | 400 / 50 (*) | 1460 |
| EVP-RA 1700 | 1750 | 11 | 400 / 50 (*) | 3200 |

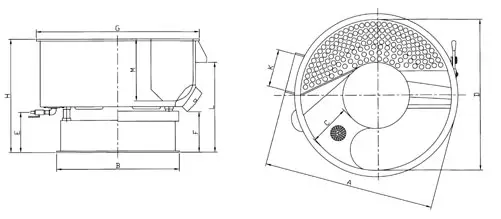

| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EVP-RA 100 | 930 | 755 | 220 | 840 | 405 | 375 | 936 | 870 | 200 | 740 | 385 |
| EVP-RA 200 | 1100 | 907 | 280 | 1010 | 375 | 375 | 1120 | 950 | 250 | 780 | 450 |
| EVP-RA 315 | 1320 | 1070 | 340 | 1210 | 420 | 390 | 1320 | 1060 | 300 | 860 | 530 |
| EVP-RA 550 | 1540 | 1230 | 400 | 1400 | 410 | 350 | 1530 | 1160 | 350 | 930 | 610 |
| EVP-RA 800 | 1740 | 1370 | 450 | 1610 | 410 | 350 | 1750 | 1200 | 400 | 940 | 670 |
| EVP-RA 1700 | 2160 | 1650 | 530 | 1870 | 660 | 720 | 2060 | 1660 | 500 | 1340 | 830 |
Share this equipment
Vibratory Bowl Finishing Machine, with parts unload
- Very easy changeable separation unit
- EVP-RA models have high abrasive efficiency and the excellent separation due to integrated ramp
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- Conjunction with other machinery
- Optional pneumatic controlled separation flap
- Optional full automatic process control
- High durable hot-poured polyurethane lining
Technical details
| Type | Gross Volume lt. | Power kW | Voltage / FrequencyAC-V/Hz 3 phase | Weight kg |
|---|---|---|---|---|
| EVP-RA 100 | 130 | 1.1 | 400 / 50 (*) | 360 |
| EVP-RA 200 | 230 | 1.5 | 400 / 50 (*) | 490 |
| EVP-RA 315 | 385 | 3 | 400 / 50 (*) | 670 |
| EVP-RA 550 | 550 | 4 | 400 / 50 (*) | 1100 |
| EVP-RA 800 | 835 | 5.5 | 400 / 50 (*) | 1460 |
| EVP-RA 1700 | 1750 | 11 | 400 / 50 (*) | 3200 |

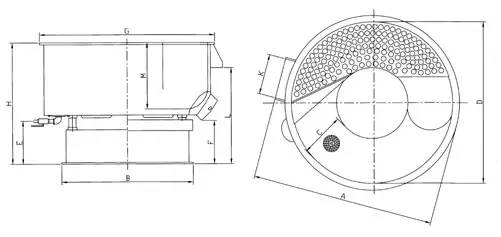

| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EVP-RA 100 | 930 | 755 | 220 | 840 | 405 | 375 | 936 | 870 | 200 | 740 | 385 |
| EVP-RA 200 | 1100 | 907 | 280 | 1010 | 375 | 375 | 1120 | 950 | 250 | 780 | 450 |
| EVP-RA 315 | 1320 | 1070 | 340 | 1210 | 420 | 390 | 1320 | 1060 | 300 | 860 | 530 |
| EVP-RA 550 | 1540 | 1230 | 400 | 1400 | 410 | 350 | 1530 | 1160 | 350 | 930 | 610 |
| EVP-RA 800 | 1740 | 1370 | 450 | 1610 | 410 | 350 | 1750 | 1200 | 400 | 940 | 670 |
| EVP-RA 1700 | 2160 | 1650 | 530 | 1870 | 660 | 720 | 2060 | 1660 | 500 | 1340 | 830 |
Share this equipment
Get In Touch With Us
We can provide you quotes, sample processing or simply call you back, just complete the form below. Alternatively call us on 01908 648757
- Very easy changeable separation unit
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- Conjunction with other machinery
- Optional pneumatic controlled separation flap
- Optional full automatic process control
- High durable hot-poured polyurethane lining
Technical Details
| Type | Gross Volume lt. | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg |
|---|---|---|---|---|
| EVP-A 220 | 240 | 1.5 | 400 / 50 (*) | 470 |
| EVP-A 350 | 400 | 3 | 400 / 50 (*) | 650 |
| EVP-A 550 | 610 | 4 | 400 / 50 (*) | 1170 |
| EVP-A 800 | 1000 | 5.5 | 400 / 50 (*) | 1350 |

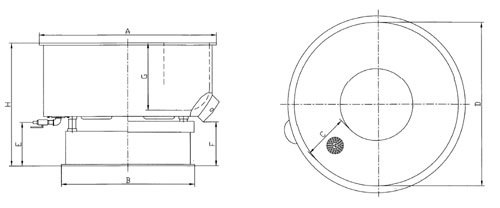

| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EVP-A 220 | 1180 | 810 | 280 | 1010 | 400 | 375 | 1120 | 950 | 250 | 780 | 450 |
| EVP-A 350 | 1380 | 1070 | 340 | 1210 | 410 | 370 | 1310 | 1040 | 300 | 870 | 520 |
| EVP-A 550 | 1540 | 1230 | 400 | 1400 | 410 | 350 | 1530 | 1160 | 350 | 930 | 610 |
| EVP-A 800 | 1740 | 1370 | 450 | 1610 | 410 | 350 | 1750 | 1200 | 400 | 940 | 670 |
Share this equipment
Get In Touch With Us
We can provide you quotes, sample processing or simply call you back, just complete the form below. Alternatively call us on 01908 648757
- Very easy changeable separation unit
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- Conjunction with other machinery
- Optional pneumatic controlled separation flap
- Optional full automatic process control
- High durable hot-poured polyurethane lining
Technical Details
| Type | Gross Volume lt. | Power kW | Voltage / Frequency AC-V/Hz 3 phase | Weight kg |
|---|---|---|---|---|
| EVP-A 220 | 240 | 1.5 | 400 / 50 (*) | 470 |
| EVP-A 350 | 400 | 3 | 400 / 50 (*) | 650 |
| EVP-A 550 | 610 | 4 | 400 / 50 (*) | 1170 |
| EVP-A 800 | 1000 | 5.5 | 400 / 50 (*) | 1350 |
| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | K mm | L mm | M mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EVP-A 220 | 1180 | 810 | 280 | 1010 | 400 | 375 | 1120 | 950 | 250 | 780 | 450 |
| EVP-A 350 | 1380 | 1070 | 340 | 1210 | 410 | 370 | 1310 | 1040 | 300 | 870 | 520 |
| EVP-A 550 | 1540 | 1230 | 400 | 1400 | 410 | 350 | 1530 | 1160 | 350 | 930 | 610 |
| EVP-A 800 | 1740 | 1370 | 450 | 1610 | 410 | 350 | 1750 | 1200 | 400 | 940 | 670 |
Share this equipment
Get In Touch With Us
We can provide you quotes, sample processing or simply call you back, just complete the form below. Alternatively call us on 01908 648757
- A special machine without an integrated screening device
- High abrasive efficienty is always combined with a good surface finishing
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- High durable hot-poured polyurethane lining
Technical details
| Type | Gross Volume lt. | Power kW | Voltage / Frequency AC-V/Hz 3 phaze | Weight kg |
|---|---|---|---|---|
| EVP 30 | 30 | 0.55 | 400 / 50 (*) | 105 |
| EVP 110 | 120 | 1.1 | 400 / 50 (*) | 260 |
| EVP 250 | 250 | 1.5 | 400 / 50 (*) | 425 |
| EVP 400 | 400 | 3 | 400 / 50 (*) | 620 |
| EVP 550 | 585 | 4 | 400 / 50 (*) | 1200 |
| EVP 800 | 830 | 5.5 | 400 / 50 (*) | 1270 |
| EVP 1100 | 1100 | 5.5 | 400 / 50 (*) | 1450 |
| EVP 1500 | 1500 | 11 | 400 / 50 (*) | 2300 |
| EVP 2200 | 2200 | 15 | 400 / 50 (*) | 2850 |
| EVP 3000 | 3000 | 15 | 400 / 50 (*) | 3200 |
| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm |
|---|---|---|---|---|---|---|---|---|
| EVP 30 | 590 | 506 | 150 | 500 | 400 | 530 | 200 | 840 |
| EVP 110 | 840 | 620 | 270 | 750 | 350 | 390 | 320 | 840 |
| EVP 250 | 1100 | 910 | 275 | 1000 | 325 | 375 | 380 | 860 |
| EVP 400 | 1320 | 1070 | 340 | 1200 | 430 | 430 | 440 | 970 |
| EVP 550 | 1540 | 1228 | 400 | 1400 | 380 | 330 | 510 | 1025 |
| EVP 800 | 1740 | 1370 | 445 | 1600 | 400 | 350 | 560 | 1150 |
| EVP 1100 | 1816 | 1375 | 540 | 1660 | 450 | 400 | 610 | 1170 |
| EVP 1500 | 2000 | 1600 | 520 | 1860 | 450 | 390 | 750 | 1290 |
| EVP 2200 | 2390 | 1810 | 670 | 2240 | 470 | 480 | 770 | 1400 |
| EVP 3000 | 2456 | 1806 | 750 | 2300 | 470 | 480 | 780 | 1400 |
Share this equipment
Get In Touch With Us
We can provide you quotes, sample processing or simply call you back, just complete the form below. Alternatively call us on 01908 648757
- A special machine without an integrated screening device
- High abrasive efficienty is always combined with a good surface finishing
- Special design heavy-duty electric vibration motor
- Continuously adjustable vibration control
- High durable hot-poured polyurethane lining
Technical details
| Type | Gross Volume lt. | Power kW | Voltage / Frequency AC-V/Hz 3 phaze | Weight kg |
|---|---|---|---|---|
| EVP 30 | 30 | 0.55 | 400 / 50 (*) | 105 |
| EVP 110 | 120 | 1.1 | 400 / 50 (*) | 260 |
| EVP 250 | 250 | 1.5 | 400 / 50 (*) | 425 |
| EVP 400 | 400 | 3 | 400 / 50 (*) | 620 |
| EVP 550 | 585 | 4 | 400 / 50 (*) | 1200 |
| EVP 800 | 830 | 5.5 | 400 / 50 (*) | 1270 |
| EVP 1100 | 1100 | 5.5 | 400 / 50 (*) | 1450 |
| EVP 1500 | 1500 | 11 | 400 / 50 (*) | 2300 |
| EVP 2200 | 2200 | 15 | 400 / 50 (*) | 2850 |
| EVP 3000 | 3000 | 15 | 400 / 50 (*) | 3200 |
| Type | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm |
|---|---|---|---|---|---|---|---|---|
| EVP 30 | 590 | 506 | 150 | 500 | 400 | 530 | 200 | 840 |
| EVP 110 | 840 | 620 | 270 | 750 | 350 | 390 | 320 | 840 |
| EVP 250 | 1100 | 910 | 275 | 1000 | 325 | 375 | 380 | 860 |
| EVP 400 | 1320 | 1070 | 340 | 1200 | 430 | 430 | 440 | 970 |
| EVP 550 | 1540 | 1228 | 400 | 1400 | 380 | 330 | 510 | 1025 |
| EVP 800 | 1740 | 1370 | 445 | 1600 | 400 | 350 | 560 | 1150 |
| EVP 1100 | 1816 | 1375 | 540 | 1660 | 450 | 400 | 610 | 1170 |
| EVP 1500 | 2000 | 1600 | 520 | 1860 | 450 | 390 | 750 | 1290 |
| EVP 2200 | 2390 | 1810 | 670 | 2240 | 470 | 480 | 770 | 1400 |
| EVP 3000 | 2456 | 1806 | 750 | 2300 | 470 | 480 | 780 | 1400 |
Share this equipment
